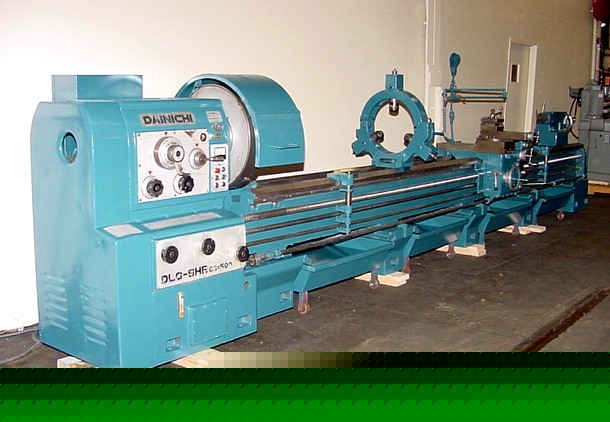

24"/35" x 200" dainichi (japanese) gap bed engine lathe
24"/35" x 200" DAINICHI (JAPANESE) GAP BED ENGINE LATHE
SWING OVER BED WAYS ................. 24.8"
SWING IN REMOVABLE GAP .............. 35.4"
SWING OVER CROSS SLIDE .............. 15.7"
DISTANCE BETWEEN CENTERS ............ 200"
HOLE THRU SPINDLE ................... 3.3"
SPINDLE NOSE ........................ A1-11"
WIDTH OF BED ........................ 16.7"
SPINDLE SPEED RANGE (16) ............ 9 - 800 RPM
LONGITUDINAL FEED RANGE ............. .005" - .245"
INCH THREADING RANGE ................ 1 - 56 TPI
METRIC THREADING RANGE .............. .5 - 28 mm
TAILSTOCK QUILL DIAMETER ............ 3"
TAILSTOCK SPINDLE TRAVEL ............ 4"
TAILSTOCK SPINDLE TAPER ............. #5MT
APPROXIMATE DIMENSIONS .............. 50"W x 257"L
APPROXIMATE WEIGHT .................. 12,500 LBS
16" CAPACITY ROLLER TYPE STEADY REST
