> Schmersal az 15 zvrk safety sw
Schmersal az 15 zvrk safety sw
Schmersal AZ 15 zvrk Safety SwSubtitle

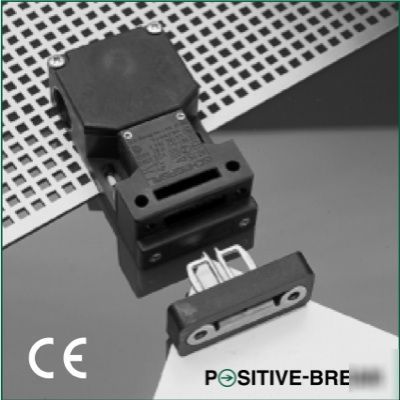

Tamper-Resistant Movable Machine Guard Safety Interlock Switch
The Series AZ15 is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional spring- driven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
The AZ15 electromechanical safety interlock switch consists of a rugged switch mechanism and a geometrically- unique actuating key. The key is mounted to the movable guard. Upon opening of the guard the NC contact(s) are forced to open through a direct (non-resilient) mechanical linkage with the actuating key. These positive-break NC contacts assure circuit interruption (and machine stoppage) upon removal of the actuator key. (The NO contact closes upon key removal.)
When the guard is closed, the actuating key forces the NC contacts to close and the NO contacts to re-open.
The AZ15 is intended for use as a safety interlock switch on movable machine guards which, when open, expose the operator/maintenance personnel to machine hazards. Typical applications are the interlocking of protective gratings, access doors/gates, hinged covers, access panels and other movable guards.
Highly tamper-resistant actuating mechanism ... difficult to defeat with simple tools, tape, bent wires, etc. Reduces liability exposure.
Non-removable actuating head ... heightens tamper- resistance.
Positive-Break NC contacts ... assure circuit interruption upon actuator key removal.
High key-retention force (7 pounds) ... eliminates inadvertent opening of guard due to shock/vibration.
Watertight design ... meets IP67 washdown requirements. High-strength, stainless-steel actuator key ... tolerates
mechanical abuse without damage.
Rugged, corrosion-resistant housing ... tolerates the
Wide selection of accessories ... to meet diverse
Padlockable key ... for added security during equipment
Meets rigid safety agency standards ... BG, UL and
http:// /machine_guarding/keyed_interlock/drawings/az1516_az16zi.pdf
