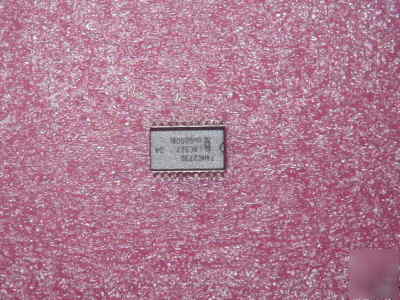

> Qty 10 * 74HC273 74HC273D octal d-type flip-flop smd 20
Qty 10 * 74HC273 74HC273D octal d-type flip-flop smd 20
The 74HC273; 74HCT273 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC273; 74HCT273 has eight edge-triggered, D-type flip-flops with individual D inputs and Q outputs. The common clock (pin CP) and master reset (pin MR) inputs load and reset (clear) all flip-flops simultaneously. The state of each D input, one set-up time before the LOW-to-HIGH clock transition, is transferred to the corresponding output (Qn) of the flip-flop. All outputs will be forced LOW independently of clock or data inputs by a LOW voltage level on the MR input.
The device is useful for applications where the true output only is required and the clock and master reset are common to all storage elements.
HBM EIA/JESD22-A114-C exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V
