Noyes fiber optic loss test kit MLP4-2
NOYES Fiber Optic Loss Test Kit
with Wave ID and Set Reference
The MLP4-2 test kit combines the OPM4-2D optical power meter and OLS1-Dual LED light source and is ideally suited for testing multimode fiber optic networks.
The OLS1-Dual features 850 and 1300 nm LED output from a single output port and is easy to operate with only a power button and a wavelength select button. Each wavelength may be transmitted individually at CW or with Wave ID. When transmitting with Wave ID, the OLS1-Dual supports transmitting pairs of wavelengths in an alternating pattern. Associated with each operating condition, the designated LED indicator will illuminate to identify the currently enabled operating mode and emitted wavelength(s) along with battery charge status and external power presence. The OLS1-Dual output port is equipped with UCI based removable adapters to allow the output connectors to be inspected and cleaned.
The OPM4-2D features automatic wavelength identification and switching (Wave ID) when used with the OLS1-Dual and stores optical references for each calibrated wavelength. A large dual-wavelength LCD display with backlight shows measured power [dBm or W] or insertion loss [dB], calibrated wavelengths [nm], wavelength ID, and estimated remaining battery life. The OPM4-2D optical input port accepts a variety of Noyes thread-on style adapter caps (ordered separately) to meet a wide range of testing requirements.
The OPM4-2D and OLS1-Dual offer long battery life from common AA alkaline batteries.
The MLP4-2 test kit is fully N.I.S.T. traceable.
Wave ID (auto identification & switching)
Large LCD with backlight (OPM4-2D)
Power measurements in dBm or W; insertion loss in dB
Long battery life with 2 x AA alkaline
Free 50 m and 62.5 m mandrels
Certify multimode fiber links per TIA/EIA standards
The 1300 nm output can also be used to test short distance (up to 10 km) single-mode fiber links

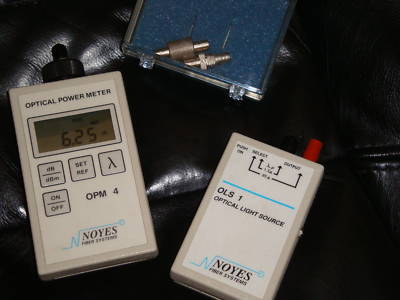

MLP4-2 OLS1-Dual optical light source, OPM4-2D optical power meter, adapter cap, 50 and 62.5 m mandrels and carry case (as pictured).
(note: blue protective boots not included, but available new from Noyes)
THE UNIT COMES WITH A 7 DAY RIGHT OF REFUSAL AND 30 DAY WARRANTY. The unit may be used, but in excellent condition and half the price of a new one.
