Hp 8754A network analyzer 4-1300MHZ w/opt H26 tested
HP 8754A Network Analyzer 4-1300MHz W/Opt H26 TESTED
With this setup, you get the entire package!
It has been tested by our engineer and is guaranteed to be in fine working order. Cosmetic condition is very good, with some signs of wear. 87544A Features:

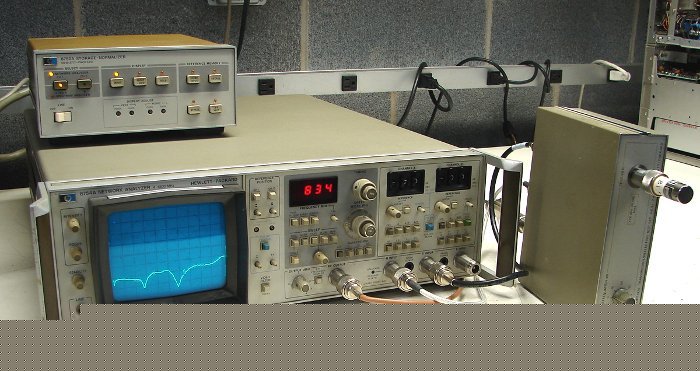

HP 8754A is a complete stimulus/response test system which combines a 4-1300 MHz swept source, three-input narrowband, tuned receiver, and both rectilinear and polar displays in a compact package.
The convenient built-in source incorporates digital display of the start or center frequency, the ability to sweep all or any portion of the 4-1300 range, and crystal markers at 1, 10, or 50 MHz intervals to enable accurate frequency calibration and measurement.
The 8750A Storage Normalizer is for use with Network and Spectrum Analyzers. It provides simple CRT photos and X-Y recordings plus digital storage and normalization.
The 8502A 50-ohm Transmission / Reflection Test Set has a frequency range of 500kHz to 1.3GHz. With the INCLUDED 08754-60057 Frequency Doubler, (Option H26) 4MHz to 2.6GHz, 50 ohms. Permits simultaneous transmission and reflection measurements when used with this 8754A Network Analyzer.
