Honeywell limit control micro switch 8LS1 with actuator

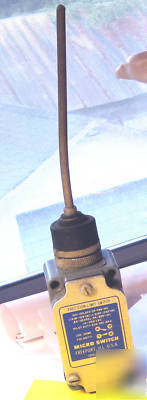

This is a Honeywell 1LS2 enclosed micro switch with a stranded steel cable actuator.
Enclosed Switches Series LS;Wobble
Flexible Cable; 1NC 1NO DPDT Snap
Action, Double Break; 0.5in. - 14NPT
This switch will work in any direction but in.
THIS UNIT IS 1.6 INCHS BY 1.57 INCHS BY 5.550 TO END OF ACTUATOR.
* Mode of operation is field adjustable
* Wide choice of heads and actuators\Variety of operating characterictics
* UL and CSA approved parts available
* Metal fabrication equiment
MICRO SWITCH compact LS limit switches have a long record of successful performance in industrial applications. The Micro Switch LS fits in many places too small for any other fully adjustable limit switch.
* specifications operating force(O.F.) 1.39 N max. (5 oz max.)
* Pretravel (P.T.) 28.6 mm. max. (1.125 in. max
* Product Type Compact Limit Switches
* Actuator Wobble - Flexible Cable
* Circuitry 1NC 1 NO SPDT Snap action Double-break
* Ampere Rating 10 A Ind./0.8 A Res./0.4 Res./0.1 A Pes.
* Supply Voltage 120 Vac. 240 Vac. 480 Vac/115 Vdc/230 Vdc/550 Vdc
* Housing Material Zinc Die-Cast
* Termination Type 0.5 in. - 14 NPT Conduit
A drawing of the unit scale and tolerances is avaliable.
I offer a money back 7 day refund.
If you would like more information or more pictures please Email me.
