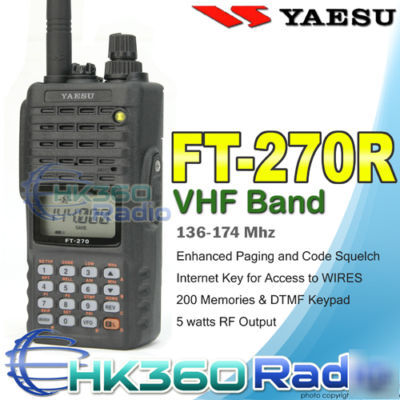

Yaesu ft-270R vhf 136-174MHZ handheld radio FT270R
YAESU FT-270R VHF 136-174Mhz Handheld radio
Want a handheld with a display you can actually see?! The FT-270R is the handheld for you.
Frequency Range Receive: 136 - 174 MHz
Frequency Range Transmit: 136 - 174 MHz
Channel Steps: 5/10/12.5/15/20/25/50 & 100 kHz
Standard Repeater Shift: 600 kHz
Current Consumption: 165 mA (Receive)
Case Size: 2.4" (W) x 4.7" (H) x 1.3" (D)
Weight: 13.8 oz 390 g. (with antenna & battery)
Circuit Type: Double-conversion superheterodyne
Sensitivity (12dB SINAD): Better than 0.16uV
Adjacent Channel Selectivity: Better than 70 dB
Intermediate Frequencies: First: 21.7 MHz. Second: 450 kHz.
Intermodulation: Better than 70 dB
AF Output: 800 mW @ 16 Ohms for 10% THD (@ 7.4 V)
RF Power Output: 5/2/0.5W (@ 7.2 VDC)
Frequency Stability: Better than 5 ppm
Modulation Type: Variable Reactance F2D, F3E
Maximum Deviation: 5 kHz / 2.5 kHz
Spurious Emission: Better than 60 dB below carrier (at high and medium power)
Microphone Impedance: 2 k Ohm Condenser
* 1 x Yaesu FT-270R VHF 136-174MHZ (EXP Version)
* 1 x FNB-83 7.2V 1400mAH Battery
* 1 x English Operating Manual
"B" for 120VAC, "C" for 220-240VAC, "U" 220-240VAC UK plug
We provide the right type of charger when you purchase.
