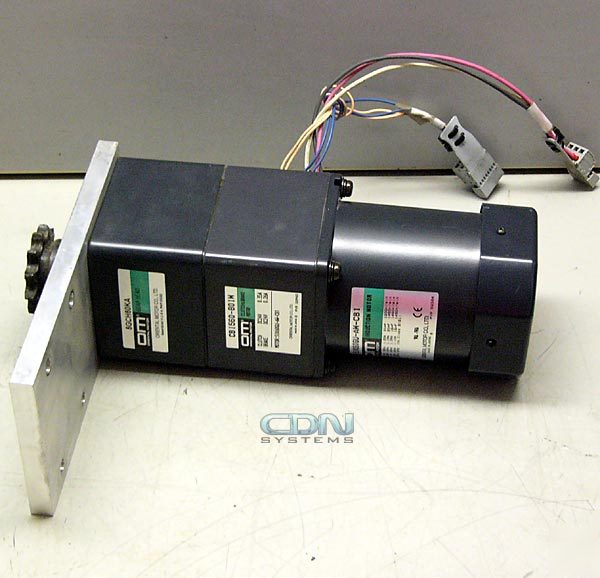

Oriental 1/12HP induction motor +clutch brake gear head
Oriental 1/12HP Induction Motor +Clutch Brake Gear Head
Oriental Motor says: "This compact precision motor is equipped with an internal clutch and brake mechanism. This combination makes it ideal for applications involving frequent START/STOP operation, positioning, indexing, jogging and incremental feeding.
* Suitable for high-frequency operation
* Highly reliable gearheads"
* Output Power: 1/12HP / 60W
* Voltage: Single-phase 100/110/115VAC, 50/60Hz, 4 poles
* Rated Speed: 30RPM (Motor speed: 1450RPM)
* Frame Size: 5 (3.54" square)
* Rated Motor Torque: 405mN-m
* Brake & Clutch Voltage: 24VDC
* Holding Brake Torque: 210oz-in.
* Permissible Overhung Load: 157lbs
* Permissible Thrust Load: 33lbs
* Built-in Thermal Protection
* UL, cUL, CE agency approval markings
