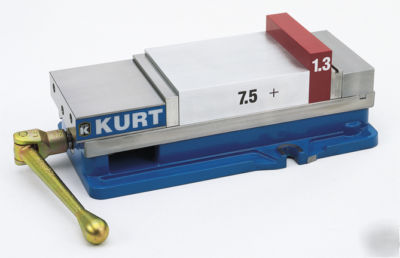

Kurt anglock® d-series vises model D688 - 6" jaw width
* Outside rail edges of the body are machined.
* Vise nut does not extend beyond the end of the vise body.
* D688 has the same footprint as the D675 vise. Distance from the keyway to stationary same as D675.
* Groove Lock jaw (D60-315) and workstop (WSRL46) standard.
* Patented "O" ring pull down feature standard.
* Approximately a 20% increase in clamping pressure over D675 vise
* Bed height matched to size 2.875" (73.025mm) .0005".
* Repeatability within .001"
* Sealed needle thrust bearing used at hex end of screw to reduce clamping friction.
D688 is designed for precision part clamping on basic machine tools such as knee-type mills, grinders and machine centers. D-Series vises are ideal for extremely high accuracy tool and mold applications and for use in running production parts where datums, flatness and parallelism is important. Precision bore, tap, drill, grind and finish with high accuracy on most parts made of die cast aluminum, steel, iron, etc. No other brand can give you the time proven accuracy of the Kurt AngleLock Vises. All Kurt Vises have friction reducing, needle bearing, and thrust collar on the screw.
