1999 okk hm-50S cnc hmc w/fanuc 16I-m, high pres coolnt

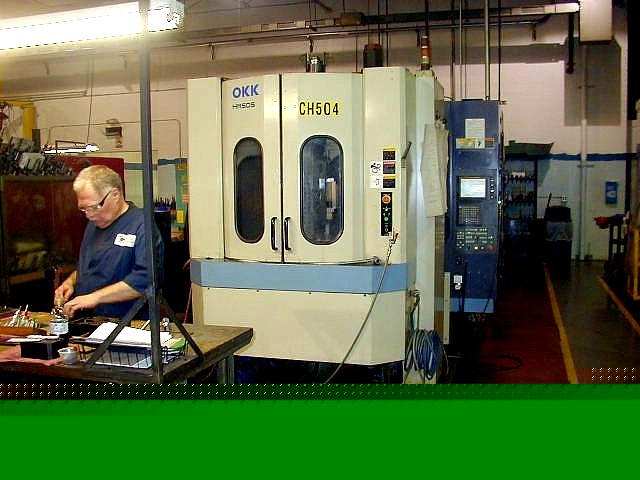

1999 OKK HM-50S CNC HMC w/FANUC 16i-M, HIGH PRES COOLNT
OKK MODEL HM-50S HORIZONTAL MACHINING CENTER
PALLET TABLE DIMENSIONS: 19.69" x 19.69"
MINIMUM INDEX CURVIC COUPLING: 1 DEGREE
MAXIMUM LONGITUDINAL TRAVEL, X-AXIS: 24.4"
MAXIMUM VERTICAL TRAVEL, Y-AXIS: 22.05"
MAXIMUM TABLE TRAVEL, Z-AXIS: 22.05"
SPINDLE CENTER TO PALLET SURFACE: 1.18 - 23.23"
SPINDLE GAGE LINE TO PALLET CENTER: 3.91 - 27.95"
MAXIMUM LOAD ON PALLET: 992 LBS
LOADABLE WORKPIECE DIAMETER: 24.4"
PALLET CHANGE TIME, TWO STATION APC: 5 SEC
INDEXABLE SPEED (PER 90 DEGREE): 1.8 SEC
SPINDLE RANGES, AUTOMATIC SELECTION: ELECTRICAL 2 STEP
SPINDLE SPEEDS: 35 - 14,000 RPM
RAPID TRAVERSE RATE, X, Y, Z AXES: 1,575 IPM
FEED RATE RANGE: 0.04 - 1575 IPM
AUTOMATIC TOOL CHANGER: 40 POSITIONS
MAXIMUM TOOL DIAMETER, MAGAZINE FULL: 3.23"
TOOL TO TOOL CHANGE TIME: 1.3 SEC
AIR PRESSURE REQUIRED: 57 - 85 PSI
MACHINE DIMENSIONS: 98.82" L X 155.12" W X 114.17" H
COOLANT THRU THE SPINDLE - HIGH PRESSURE
