> NEMA23 z axis ballscrew 175MM stroke hiwin 15MM cnc
NEMA23 z axis ballscrew 175MM stroke hiwin 15MM cnc

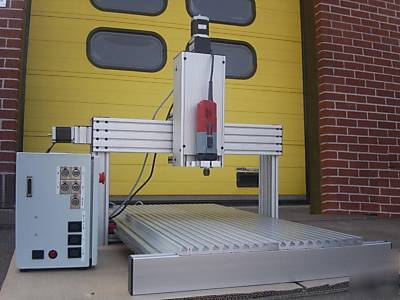

Modular Nema 23 Z Axis - 175mm (7")stroke + Ballscrew + Hiwin 15mm Rails / Carriages
Our Part Number MODULAR Z-175-BS12X4-15mm
The listing is for the Z Axis only....Does NOT include the Kress Milling Spindle (we can supply the Kress)
Hiwin Profile Rails and Carriages, Linear translation by Ballscrew Assembly, Kress Motor Mount.
x2pcs HIWIN HGW15CC Carriages and "square" profile rails are assembled within the Modular Z axis housing, the Carriages are further protected by seals.
Translation is via a Ballscrew Assembly, zero backlash.

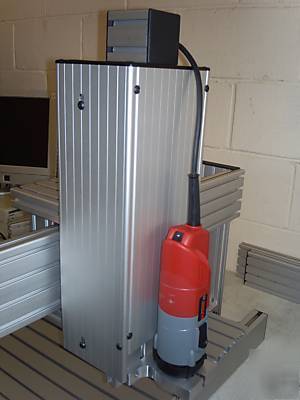

Kress 43.0mm motor / spindle mount is assembled to the bottom yoke.
Z Axis: Manufactured in the Uk by Marchant Dice Ltd (worldofcnc). Designed for use with our MDL-MODULAR-BS range of Desktop CNC Machines
Tools: N/a Assembly time: Supplied Assembled
HIWIN Profile Rails and Carriage, HGR15 + HGW15CC: http:// /images/Hiwin_rails_carriages.pdf
Ballscrew Assembly: RSW12x4 12mm Right hand thread (D) - (1 revolution = 4.0mm) http:// /images/RSW%20Ballnut.pdf
Motor Mount: For the Kress 43.0mm.
Coupling: Fixed Clamp style SCG25C 6x? Please advise, diameter of your stepper motor spindle?
Forum www. marchantdice.com/forum
