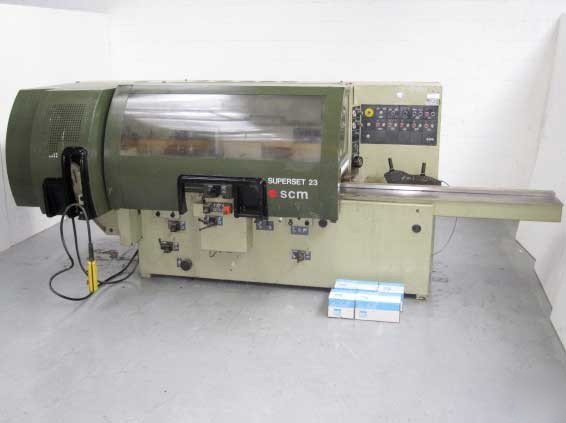

Scm superset 6 head moulder 5 + universal
Designed for planing and moulding in one pass ideal for all your window door sections and also mouldings. Fitted with a universal cutter head allowing machining through 360 degrees. machine is fitted with electronic readout to the working width and thickness of finished timbershaft driven feed systemPneumatic pressure to feed rollersmechanical readouts fitted on machine adjustmentspowered rise and fall of the main beam rubber feed roller in machine bed after 2nd bottom lubrication to the bededge reference block fitted to the first bottom headfour knife blocksremote control unit for the rise and fall of main beam and inch feed of the workpiece to the rear of the machineAlso comes complete with sound enclosure.Technical Specification:Serial number AA1/6932Year of manufacture 1993Head configuration brltbuMax finished stock 230x120mmFeed speed 4 to 26m/minInfeed table length 2000mmSpindle diameters 40mmMotor powersFirst bottom 7.5hpVertical spindles(single motor) 15hpTop head 15hpSecond bottom head 10hpUniversal head 10hpFeed motor 4hpMachine dimensions 4200x1800x1700mm
