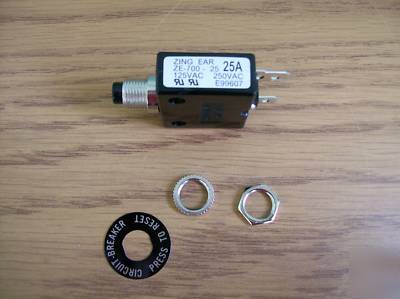

Circuit breaker * push button * 25 amps
** 6 to 30 second trip time @ 200% of rating
Endurance: 1,000 times at least
Calibration: Breaker will continuously carry 100% of rated load.
It may trip between 101% and 144% of rated load, but must
Dielectric Strength: Over 1,500 volts RMS.
Max. Operating Voltages: 50VDC, 250VAC
Interrupt Capacity: 2,000 Amps, at 50 VDC(1-30 amp Models)
1,000 Amps, at 250VAC (1-30 amp Models)
B7000 Series PUSH BUTTON THERMAL
B7000 Series breakers are UL 1077 recognized as
Supplementary protectors, File E99607, and CSA
Certified as appliance Components protectors, File
B7000 Series are single pole, thermal circuit breakers
that feature a recessed reset button which cannot be
manually pulled out to disconnect the circuit. When an
overload occurs and the breaker opens, it allows the
reset button to pop out for visible trip indication.
