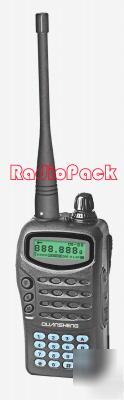

25AT vhf programmable portable radio 5W 136-174MHZRX/tx
Keypad Programmable VHF Portable Radio (Deluxe Model)
TG-25AT is in a class of its own. Though compact enough for pocket or palm, this rugged 136.0000-174.0000MHz MHz FM transceiver offers all the features needed to make operation simple and sure.
One Year Factory Warranty! (not including the accessaries)
2) built-in CTCSS with 39 codes (Sub-audio Frequency)
3) Store channel: 99 Programmable Channels
4) Automatic Channel Scan Mode
5) Large backlit LCD screen navy-blue
6) Lamp function, convenient for darkness operating
7) VFO programmed (direct input the frequency of you need from keypad)
8) Switch the power with HI 4~5W and LOW 1W
9) Channel spacing: 5KHz, 10KHz, 12.5KHz, 25KHz
13) Modem pattern: frequency modulation
16) Large output power realizes long distance communication
17) High-capacity battery 7.2v NI-MH,1100mAh offering higher capacity than a NiCd battery
18) Earphone / Microphone / Auto-charger rabbet, expediency for answering and charging
19) Human system engineering, perfect handle
20) Direct entry of frequencies via KEYPAD
22) 2 prong external microphone jack
25) Support "split" transmit or receive operation, capable of offset such as 600Khz
Frequency range:VHF 136.0000~174.0000MHz(TX/RX)
Frequency Stability 5ppm(-15 C +60 C)
Step-in Frequency: 5,10,12.5,25KHz
Sensitivity 0.18 V 12dB SINAD
Operation Voltage 7.2V (nominal) 1100mAh Ni-Mh Battery
Charging Period 8 hours( at 100mA
