405NM laser module housing with glass lens 10.5 mm dia.
This is a NEW Laser Module Housing- Including 405nm Glass Lens.
* The long awaited housing to hold the 405-G-1 lens is HERE !
* This one has a recessed tool adjustment for the lens assembly.
* Ready for you to install a 5.6 mm diameter 405nm laser diode of your choice. (We sell those at powers up to 500mW pulsed/ pushed). No laser diode included.
* A special design just for our 405 nm Glass Lens. Now available as a complete assembly.
* Add your diode and driver, and you are done!
* Lens has very short focal length, 0.6 NA. AR Coated! ~ 92% efficient lens.
* Adjustable Focus with a screwdriver, or small tool.
* Please see the data sheet for THE LENS here405 nm Glass Collimating Lens DATA SHEET
Lens Made in USA. Housing made in Taiwan by an ISO 9001 manufacturer. Assembled in USA.We are not a trading company, we only sell LASERS and related components.

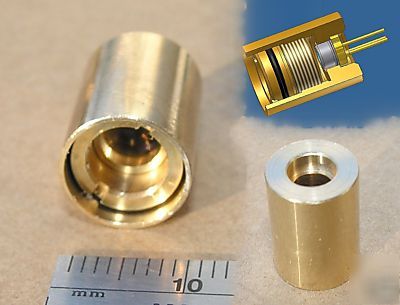

Easy to use, just press fit for diode into the rear. Split View Photo shows item to the left, a 3-D cut away internal design image to the top right, and the rear with 5.6mm diameter hole to the bottom right.
