Multi-color leds green red & blue smt tricolor (30)

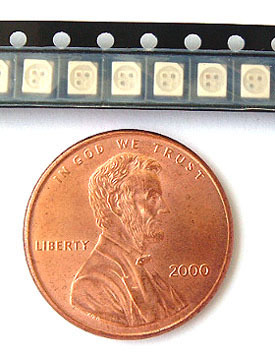

Multi-Color LEDS Green Red & Blue SMT Tricolor (30)
-Indoor displays (e.g. light writing displays)
-LED chips can be controlled separately
-Full color displays RGB-Displays
-Backlighting (LCD switches keys displays illuminated advertising general lighting)
-Not suitable for automotive applications
-Package: white PLCC4; Multi TOP-LED
-Additive mixture of color stimuli by independent driving of each chip
-Wavelength: 645 nm (hyper red) 570 nm (green) 465 nm (blue)
-Technology: AiGaAs (hyper red) GaP (green) GaN (blue)
-Optical Efficiency: 3 lm/W (hyper red) 2.5lm/W (green) 1 lm/W (blue)
-Grouping Parameter: Luminous Intensity
-Assembly Methods: Suitable for all SMT assembly methods
-Soldering Methods: IR reflow soldering and TTW soldering
-Operating Temp: -40 ...+100 C
-Forward Current: 30 mA (hyper red) 30 mA (green) 20 mA (blue)
-Surge Current: .5A (hyper red) .5A (green) .2A (blue)
-Reverse Voltage: 5V (hyper red) 12V (green) 5V (blue)
-Forward Voltage: 2.5V (hyper red) 2.5V (green) 4.1V (blue)
-Viewing Angle: 120 Grad (at 50% Iv)
West Florida Components Inventory number: LED012
