Globe motors motor gear with tachometer 24VDC 550RPM
Part Number: 5A4303-4 (as Label)
Motor Voltage: 24VDC (as Label)
Motor 'No Load' Current: 0.34A (*)
Motor Terminal resistance: 4 ohm (*)
Tachometer Resistance: 166 ohm (*)
Tachometer output: 3V/1000RPM
Tachometer DC Output @ 24VDC motor: 47.8V (*)
Gear output speed: about 550RPM (*)
Closest standard Gear Ratio Available: 27.94:1 (** 570RPM)

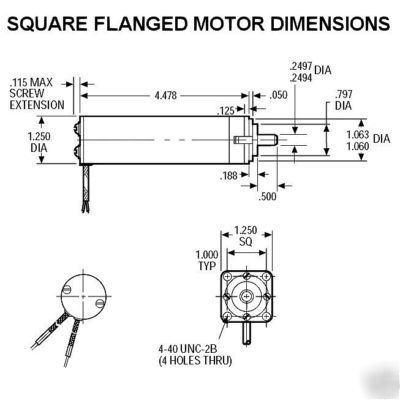

Output Shaft Diameter: 6.35mm / 0.25" (*) and Data Sheet
Output Shaft Length: 12.7mm / 0.500" (*) and Data Sheet
Total Gearmotor Weight: 350g / 0.77 lb (*)
Total Length: 143mm / 5.627" (*)
Unit Diameter: 31.75mm /1.250" (*) and Data Sheet
Mounting Flange: Square 31.75mm / 1.250"
Type A2030, Gear Look for 5A2313
http:// /mm_mil.pdf
Look for Motor & Tachometer 3A1732-4
http:// /llt_mil.pdf
Motor, Gear & Tachometer Tested and are in GOOD WORKING CONDITION.
External Cosmetic condition is very nice.

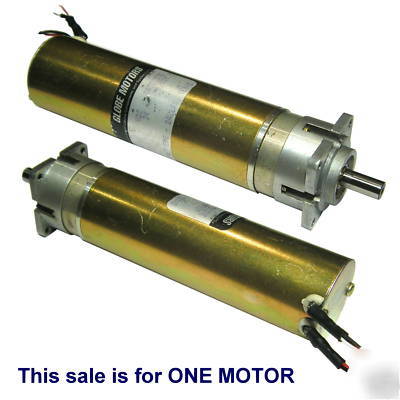

1x Globe Motors Part Number 5A4303-4 24VDC
Due to used products nature, no returns, all sales are final.
Don't hesitate to contact me for further information or any question.
