> 7~90X monocular zoom stereo microscope w ccd adapter

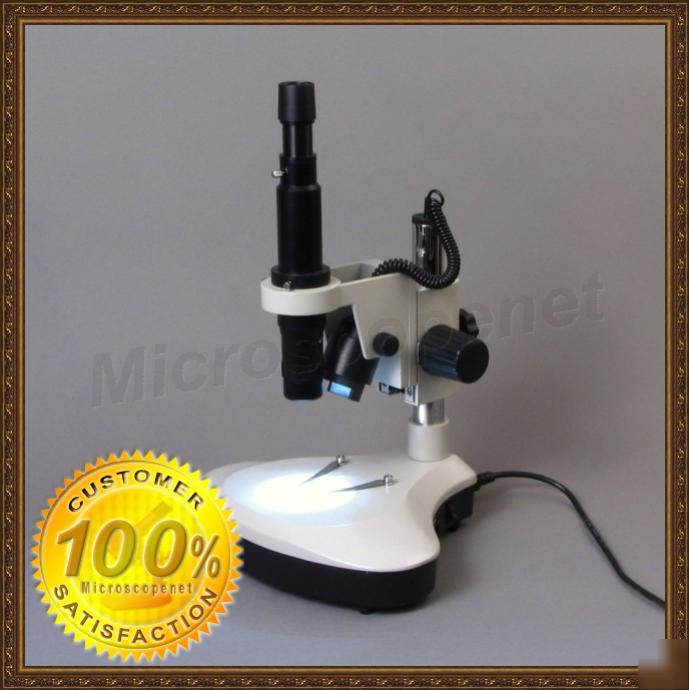

7~90X monocular zoom stereo microscope w ccd adapter
Industrial Inspection Monocular Microscope
* Plug and see, no special knowledge needed
* Ready to connect to CCD digital camera
* Zoom lenses 7x~90x, crystal clear at any point
* Long working distance allow enough lighting options
* Brightness adjustable incident and transmitted lights
* Sharp images over a wide field view
* Eyepieces: wide field WF10X & WF20X
* Total magnification:7x~90x
* Objective zoom ratio: 1:6.5 (0.7x~4.5x)
* Working distance: 3-1/2" (90mm).
* Incident (upper) illuminator: 6V/15W halogen with reflector, variable inclination
* Transmitted (lower) illuminator: 6V/20W halogen
* Easy illumination mode switch: [upper] or [lower] or [off]
* Variable intensity illumination
* Frosted glass stage plate: 3-3/4" (95mm) in diameter
* White/black plastic stage plate: 3-3/4" (95mm) in diameter
* Power supply: 110V/60Hz (US and Canada)
* Dimensions: 12-1/2" x 10-1/2" x 18" (32cm x 27cm x 46cm)
* Net weight: 10 lb 6oz (4.7kg)
* Monocular stereo zoom microscope (0.7x~4.5x)
* Adapter for CCD camera (camera sold separately)
* C-mount adapter for industrial standard CCD cameras
* Black/white high quality plastic stage plate
* Extra halogen bulb 6V/15W with reflector
* Gooseneck fiber cold light set
* Mechanical stage for stereo microscope
* Spare halogen bulb 12V/15W with reflector
* Large sturdy base stand with ring light holder
Click on the button above to view the compatible parts for this product M516
