4-branch brass deluxe pex manifold for radiant heating

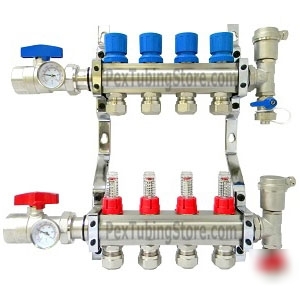

4-branch Brass Manifold Set for Radiant Heating
Pex Tubing StorePex Tubing StorePex Tubing Store BSM004
4-branch Deluxe Radiant Manifold Set. Made from brass. Nickel plated finish.
(1) Supply side radiant manifold w/ (4) adjustable flow indicators and (4) outlets for PEX tubing.
(1) Return side radiant manifold w/ (4) balancing valves and (4) outlets for PEX tubing.
(2) 1" threaded, quarter turn shut-off ball valves - one for supply manifold and one for return.
(2) Temperature gauges - one for supply and one for return manifolds to monitor supply and return water temperatures (F & C reading).
(2) Air vents to eliminate air from the system - on both supply and return manifolds (air vent caps included for pressure testing purposes)..
(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.
(8) Compression adapters for 1/2" PEX tubing (no PEX tools required to connect tubing to the manifold).
* Total number of PEX outlets: 8;
* Overall width when installed (with shut-off valves): 14.75"
