> New *13V8 @ 10 amp power supply regulator module* *
New *13V8 @ 10 amp power supply regulator module* *
THIS ITEM IS A NEW, TESTED 13.8 VOLT REGULATED POWER SUPPLY MODULE WHICH CAN PROVIDE A NOMINAL 13.8 VOLTS AT 10 AMPS WITH THE CORRECT HEATSINKING
THE MODULE REQUIRES A SMOOTHED D.C. INPUT VOLTAGE OF 17V0 TO 25V0
THE NO LOAD OUTPUT VOLTAGE IS 14V2 AND THE FULL LOAD VOLTAGE IS 13V6
ON BOARD IS AN OVERVOLTAGE PROTECTION CIRCUIT WHICH WILL DISCONNECT THE LOAD SHOULD AN OVERVOLTAGE SITUATION OCCUR

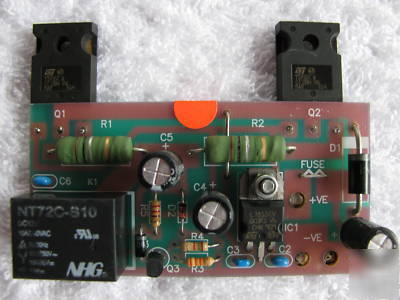

A PROFESSIONAL QUALITY GLASSFIBRE P.C. BOARD HAS BEEN USED WITH SILKSCREEN ON THE COMPONENT SIDE AND SOLDER MASK ON THE SOLDER SIDE
LEAD FREE SOLDER HAS BEEN USED IN MANUFACTURING
THE P. C. BOARD DIMENSIONS ARE :-
THE DESIGN IS BASED ON TOP QUALITY, READILY AVAILABLE COMPONENTS , S.T. MICROELECTRONICS ACTIVE DEVICES, PHILIPS RESISTORS AND HITANO CAPACITORS
I HAVE SUPPLIED OVER 400 OF THESE TO THE LOCAL MARKET OVER THE LAST 5 YEARS WITH GREAT SUCCESS
THE CIRCUIT DIAGRAM IS ALSO INCLUDED
SOME POSSIBLE APPLICATIONS ARE :-
24 TO 12 VOLT DOWN CONVERTOR FOR 12 VOLT EQUIPMENT IN 24 VOLT VEHICLES,
MODEL RAILWAYS AND SLOT CAR POWER
L.C.D. COMPUTER MONITOR SUPPLY,
ALL OF THE COMPONENTS AND THE P.C. BOARD ARE AVAILABLE SEPERATELY SHOULD YOU REQUIRE
OVERALL, THIS IS A COST EFFECTIVE SOLUTION FOR YOUR 12 VOLT APPLICATION, NO NEED TO SOURCE COMPONENTS FROM DIFFERENT SUPPLIERS, HAVING TO MAKE YOUR OWN P.C. BOARD AND WAST TIME AND FUEL RUNNING AROUND, IT JUST ARRIVES AT YOUR HOUSE!
I CAN HAPPILY SUPPLY MORE PHOTOGRAPHS VIA YOUR EMAIL ON REQUEST
I WILL REGISTER POST WORLD WIDE
1 SOLD ALREADY TO A VERY HAPPY CLIENT!
