> Agilent 8156A optical attenuator option 201
Agilent 8156A optical attenuator option 201
Agilent 8156A with Option 201 Optical Attenuator
The 8156A optical attenuator is ideal for making measurements on fast telecommunication systems. It is employed in R&D and production and is suitable for both single-mode and 50m multi-mode application. A variety of options for different return loss performance, built-in monitor paths and overall accuracy make the 8156A easily adaptable to your measurement requirements.
60dB attenuation with 0.001dB resolution, without ranging
1200nm to 1650nm wavelength range
< 0.05dB typical linearity
< 0.005dB typical repeatability
<0.02dBpp typical polarization dependent loss
+23dBm maximum input power

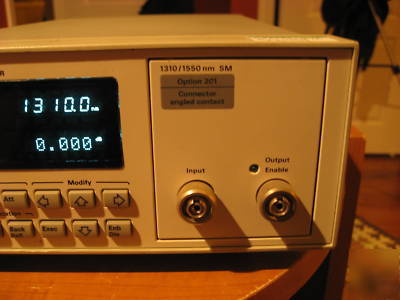

Option 201 - High Performance, High Return Loss Version
Item was fully tested and comes with a 90-day warranty and a 7-day money back guarantee. Items include the chassis and power supply cord.
