34.8" swg 25.5" cc mori seiki sl-2500Y/650 cnc lathe, m
34.8" Swg 25.5" cc Mori Seiki SL-2500Y/650 CNC LATHE, M

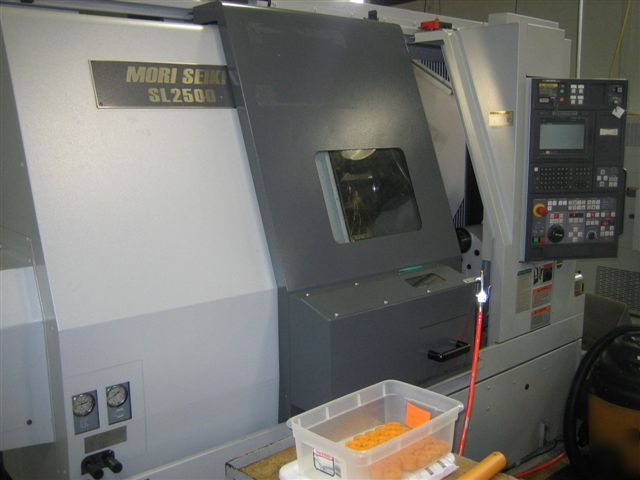

34.8" Swing 25.5" Centers Mori Seiki SL-2500Y/650 CNC LATHE, MSG-805, 10"chk., C & Y Axes, Tailstock
MORI SEIKI MODEL: SL-2500Y CNC TURNING CENTER
Max Diameter Bar Capacity .............. 2.87"
Max Swing Over Bed / Front Cover ....... 34.25" / 18.27"
Swing Over Cross Slide ................. 25.98"
Max Turning Diameter ................... 19.29"
Max Machining Length ................... 25.59"
Spindle Motor .......................... 30 / 24.7 HP
Spindle Speed .......................... 4000 RPM
Spindle Bore ........................... 3.46"
Spindle Nose ........................... A2-8
Tools .................................. 10 (All Live)
Milling Motor .......................... 7.5 / 3 HP
Milling Speed .......................... 4000 or 6000 RPM
Rapid Traverse Rates (X / Y / Z) ....... 945/787/472 IPM
X-Axis Travel .......................... 12.01"
Z-Axis Travel .......................... 27.17"
C-Axis Index ........................... .001 Degrees
Y-Axis Travel .......................... + / - 2.36"
Turret Index (Single Step) ............. 0.2 Seconds
Tailstock Travel ....................... 22.44"
Tailstock Spindle Travel ............... 4.72"
Tailstock Taper ........................ MT#5
Machine Dimensions ..................... 101" x 74" x 85"
Machine Weight ......................... 11,000 LBS.
- MSG-805 CNC CONTROL with MAPPS
- 10 STATION TURRET (ALL STATIONS LIVE)
- ALL AVAILABLE STANDARD TOOLHOLDERS
MACHINE IS IN EXCELLENT CONDITION, HAS CUT ONLY PLASTIC
