U-blox ublox tim-lc gps module- $9EA obo, 100PC reels

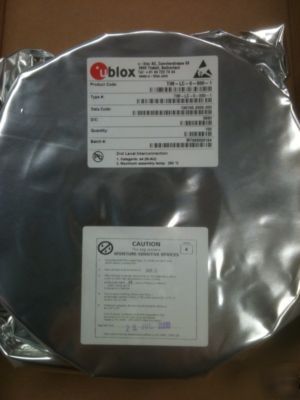

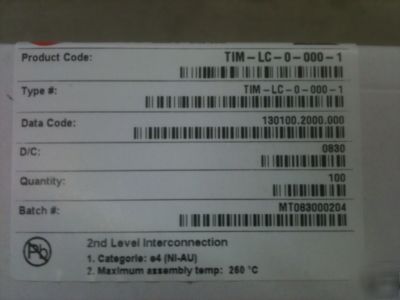

For sale are Full, never opened, factory sealed, reels of 100ea U-Blox Tim-LC GPS Receiver modules. Price is $11/Module OBO. They are sold in full reels of 100 pcs.

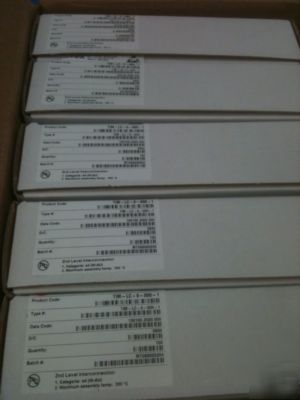

MUST SELL ASAP. HAVE A TOTAL OF 4,700 (47 REELS) IN STOCK. Will negotiate an offer if you are interested in purchasing the entire lot.
WE WILL NOT BREAK UP THE REELS!

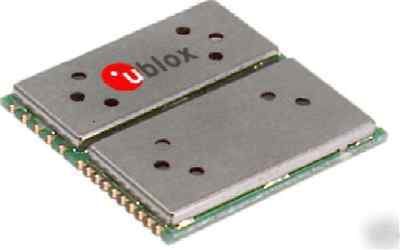

The TIM-LC is an ultra-low power OEM GPS module suitable for active antennas to run standard PVT applications. It provides two 3V 5V TTL input compatible) serial ports and easy to use boot time configuration pins. The combination of lowest power consumption, costoptimized architecture (no Flash EPROM inside) and innovative packaging technology makes the TIM-LC suitable for high-volume applications where small size, low cost and simplicity are key issues.
High acquisition and tracking sensitivity
Excellent navigation accuracy, even at low signal levels
Active multipath detection and removal
Fast Time-To-First-Fix (TTFF)
Accelerated TTFF with aiding functionality
No Flash EPROM inside Independence from memory market and price fluctuations
Highly integrated GPS module
Automatic pick-and-place assembly
Boot-time configuration pins
The leading ANTARIS GPS Engine, jointly developed by Atmel and u-blox, provides excellent navigation performance under dynamic conditions in areas with limited sky view like urban canyons, high sensitivity for weak signal operation without compromising accuracy, and support of DGPS and multiple SBAS systems like WAAS and EGNOS. The 16 parallel channels and 8192 search bins provide fast start-up times. The aiding functionality accelerates start-up times even further. The low power consumption and FixNOW power saving mode make this product suitable for handheld and battery-operated devices.
8192 simultaneous time-frequency search bins
ATR0620 Baseband IC with ARM7TDMI inside
DGPS and SBAS (WAAS, EGNOS) support
Operating voltage 2.7 to 3.3 V
Battery supply pin for internal backup memory and real time clock
Industrial operating temperature range -40 to 85 C
Small size: 25.4 x 25.4 x 3 mm, weight: 3g
Innovative packaging technologies enable high integration of a GPS receiver in a module component measuring just 25.4 x 25.4 mm and allowing straightforward integration in particularly small end products and opportunities in new application fields. The small form factor and the SMT pads allow a fully automatic assembly process with standard pick-andplace equipment and reflow soldering, enabling costefficient high-volume production.
Operating Temperature Storage Temperature Vibration Shock -40 C to 85 C -40 C to 125 C 5 Hz to 500 Hz, 5g (IEC 68-2-6) Half sine 30g / 11ms (DIN 40046-7)
Interleaving multiple protocols via same serial interface is supported
30 pin leadless chip carrier reflow solderable
Active Antenna Recommendations
Integrated short-circuit detection and antenna shutdown
Open circuit detection is supported
