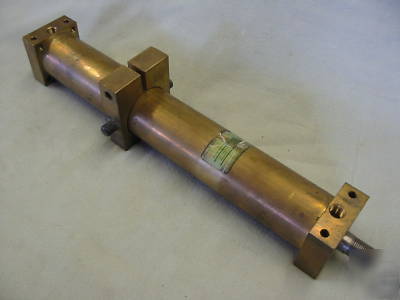

Air cylinder, 2" bore x 13" stroke, brass, adj/trunion
AIR CYLINDER, 2" BORE X 13" STROKE

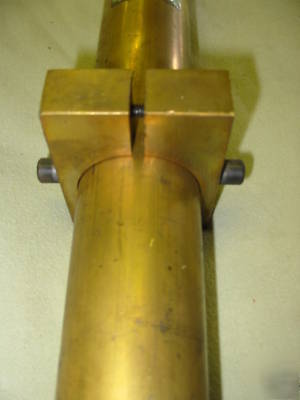

MOUNTING, CAN BE MOUNTED FROM BOTH ENDS, SIDE MOUNT OR WITH THE ADJUSTABLE TRUNION. THE TRUNION CAN BE PLACED ANYWERE UP AND DOWN THE BODY OF THE CYLINDER. THE PINS ARE 1/2" DIAMETER AND THE BLOCK IS 1.900 WIDE.
DIMENSIONS, OVER ALL LENGHT 17 1/2", BLOCK TO BLOCK 16 1/4", END BLOCKS ARE 2 1/2" SQUARE, TRUNION BLOCK IS 1.900 X 3 1/2"
THERE IS A CUSHION ON THE PISTON END BUT IT IS NOT ADJUSTABLE
