New 4 vaccon vacuum pump system VP61-60H

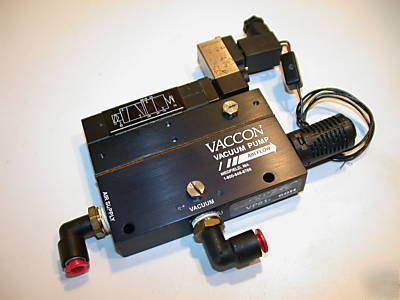

4 NEW VACCON VACUUM PUMP SYSTEM VP61-60H
Venturi vacuum pump with integral 6 way solenoid valve and silencer as standard. Provides precise, rapid vacuum generation and decay.
Integral 6 way valve has dual functions with only one electrical connection:
1. Energizes venturi rapidly for high cycle rates no loss due to plumbing lines.
2. A positive vacuum blow-off is created automatically when the valve is de-energized. This allows the charged air reservoir within the pump to ventthrough the vacuum port for rapid part removal.
Blow-off prevents vacuum line clogging Eliminates plumbing between components for faster installation
http:// /~wfd/Catalogs/Vaccon/Vaccon%20Pump%20Catalog.pdf
