Wind generator tubine motor 4300 watts

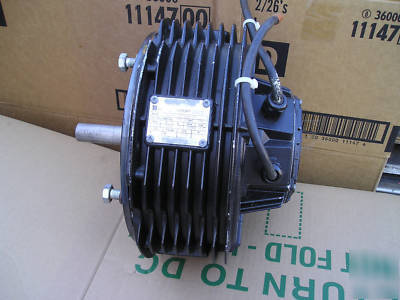

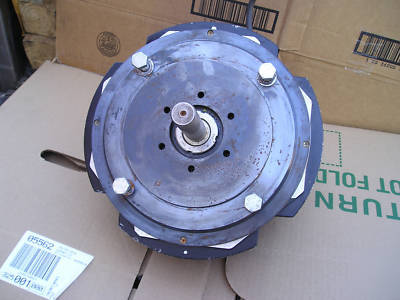

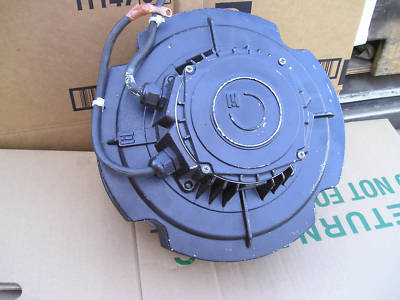

This is a MSS 4500 mavilor DC 4.3 KW Axial Flux Servo Motor
3000 RPM, 224 Volts, 21 Amps, 4300 Watts.Axial Flux Motors Are Great Wind Generators ( No Cogging ).The Differents Between An Axial Flux Pernament Magnet MotorAnd A Pernament Magnet Motor Is The Axial Flux Has No Iron Core So That Means No Cogging And Less Heat In Your Motor Coils, Plus The Axial Flux Motor Can Put Out More Amp With Less Torque On Main Shaft.

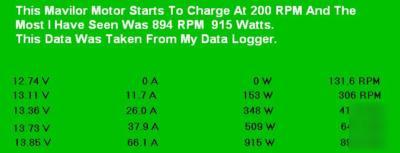

This Is One Of The Best Wind Generators I Have Tested, I Have Two Of These.Motor Is 12 Inches Across With A 1 Inch Shaft.This data Below Is Real Charge Amps ( NOT SHORTED AMPS )Starts To Charge 12 Volt At 200 RPMs306 RPM Charges 12 Volt At 11.7 AMPS 153 Watts
418 RPM Charges 12 Volt At 26.0 AMPS 348 Watts
647 RPM Charges 12 Volt At 37.9 AMPS 509 Watts
894 RPM Charges 12 Volt At 66.1 AMPS 915 Watts
