Stanford research PS350 5KV high voltage power supply

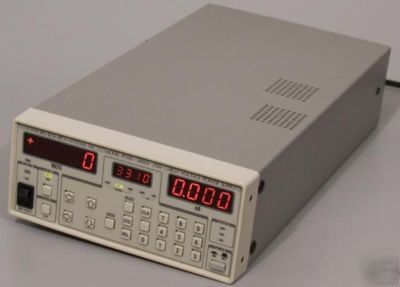

Stanford Research Systems PS350 High Voltage Power Supply with GPIB (Option 01)
Specifications are from Stanford Research and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Power Supply List Price is: $1,350.00 from Stanford Research
Option 1 List Price is: $495.00 from Stanford Research
Total List Price is: $1,845.00
Link to the Datasheet: Stanford Research PS300 Series Power Supply Datasheet
Link to the Manual: Stanford Research PS300 Series Power Supply Manual
* Programmable limits and trips
The PS300 Series High Voltage Power Supplies rugged, compact, reliable instruments for just about any high voltage application.
With up to 5 kV output capability, a GPIB computer interface, and 0.001% voltage regulation, these high voltage power supplies have become the industry standard.
The PS310, PS325 and PS350 are dual-polarity, 25 W supplies. All of the instruments are arc and short-circuit protected with separate programmable hard and soft current limits, making it possible to use them as constant current sources.
You ll appreciate the convenience and versatility of the PS300 Series. Two large LED displays monitor the output voltage and current being delivered to your load. Overload reset, limit and trip status, local/remote state, and high voltage enable are also displayed, so you can monitor the instrument status at a glance. A highly visible red LED always indicates when the high voltage is on.
Operation is simple The parameter being adjusted or set is displayed separately and can be entered without affecting the actual output voltage. Up to nine instrument configurations can be stored and recalled at any time, making it easy to run multiple tests.
GPIB is available as an option on the 25 W instruments. All parameters can be set and read via the computer interfaces.
Analog Monitoring and Control:
A rear-panel analog input allows the high voltage output to be programmed by a 0 to 10 VDC signal. Two rear-panel analog outputs provide output voltage and current monitoring capabilities. These outputs drive up to 10 mA of current and have 1 O output impedance.
The PS300 Series High Voltage Power Supplies are as useful in the R&D lab as they are in automated test applications. Wherever you are using them, the PS300 Series provide proven reliability and performance at a very affordable price.
Voltage Output Specifications:
Output Voltage: 50 VDC to 5 kV
Voltage Set Accuracy: 0.01% +0.05% of full scale
Voltage Display Accuracy: Vset accuracy 1 V, typ. ( 2 V, max.)
Voltage Resolution: 1 V (set and display)
Voltage Limit Range: 0 to 100% of full scale
Voltage Regulation: 0.001% for 10% line change, 0.005% for 100% load change. Specifications apply for >0.5% (full load) to >1% (no load) of full scale voltage.
Output Ripple (Vrms): 0.002% of full scale
Current Limit Range: 0 to 105% of full scale
Current Set Accuracy: 0.01% +0.05% of full scale
Current Display Accuracy: 1 A (typ.), 2 A (max.)
Stability: 0.01% per hr., <0.03% per 8 hrs.
Temperature Drift: 50 ppm/ C, 0 C to 50 C (typ.)
Protection: Arc and short circuit protected. Programmable voltage limit, current limit and current trip.
Recovery Time: 12 ms for 40% step change in load current (typ.)
Discharge Time: <6 s (t0 <1% of full-scale voltage with no load, typ.)
Monitor Output Specifications:
Output Scale: 0 to +10 V for 0 to full-scale output regardless of polarity
External Voltage Set Specifications:
Input Scale: 0 to +10 Volts for 0 to full-scale output regardless of polarity
Output Slew Rate: <0.3 s for 0 to full-scale under full load.
HV Connector: Kings Type 1704-1
Mating Connection: Kings Type 1705-1
Dimensions: 8.1" W x 3.5" H x 16.0" L
Power: 50 W, 100/120/220/240 VAC, 50/60 Hz
