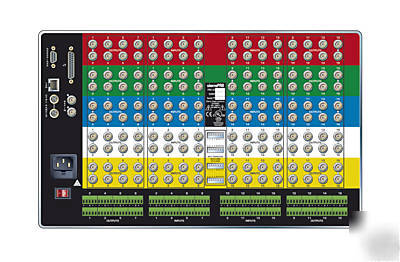

Kramer sierra video 1616V5XL 16X16 rgbhv matrix switch
16x16 RGBHV Matrix Switcher
* High Bandwidth - 450MHz (-3dB) fully loaded.
* Very Low Crosstalk - 80dB @ 1MHz, - 47dB @ 100MHz, - 30dB @150MHz.
* Matrix Mapping Universal Breakaway Switching - A unique and valuable benefit of Sierra Pro routing switchers. This feature allows the switching of every level of every input of the routing switcher independently. Switch a single level or any combination of levels of the R, G, B, H, V, left audio and right audio levels of any input. For example,
input a composite video signal on the R level of input one and an s-Video (Y/C) signal on the G and B levels of input
one and switch only the composite video signal on the R level, switch only the s-Video Y and C signals on the G and
B levels, or switch all three levels together.
the routing switchers. This allows one routing switcher to be used for multiple rooms where the control system for
each room will address only the inputs and outputs assigned to that room.
* Video Follow Sync Switching - The H and V channels of an RGBHV signal are switched in advance of the RGB
video channels of the signal to provide clean, glitch-free switching between most non-synchronous sources.
* Qwik Adjust Knob Rotary Control Interface - This user intuitive knob along with the 80 character LCD display provides quick and convenient setup, adjustment and signal switching.
* Video Mute Capability.
* Output Disconnect Feature.
* Sync Reporting - Through the G.R.I.P.TM control software, RS-232, or the front panel, the routing switcher can capture and report the input sync rates for each input signal.
* Input Detection - 200mv. Re-shapes and re-squares sync to output correct TTL level.
* Selectable Termination - 510 or 75 Ohm (each input).
* Genlock Input - Looping internal sync input for vertical interval switching.
* Audio Type - Balanced or un-balanced stereo on terminal blocks.
* Input (Level) Adjustment Capability (-10dB to +15dB) - Each input via RS-232, front panel, and G.R.I.P software.
* Output (Volume) Adjustment Capability (Mute, -59.5dB to +15dB) - Each input via RS-232, front panel, and
* No Zipper Effect - Sierra Pro XL routing switchers employ zero crossover chip technology which eliminates the annoying zipper sound effect associated with digital volume controls.
* Audio Mute Capability.
* Crosstalk - Series 8 & 12: 80dB @ 1kHz, Series 16 & 32: 80dB @ 15kHz.
* S/N Ratio (20 to 20kHz) - Series 8 & 12: 90dB, Series 16 & 32: 110dB.
* Firmware Updates - Downloadable.
* Control - Local front panel control with 80 character LCD readout.
RS-485 for optional control panels.
IP (Ethernet) control.
G.R.I.P: Windows - based routing switcher setup/diagnostic software.
* Redundant Power Supplies - Optional (standard on all 32 x 32 and 32 x 16 models).
* Control Panels (Optional) - Programmable, Single Bus and XY.
