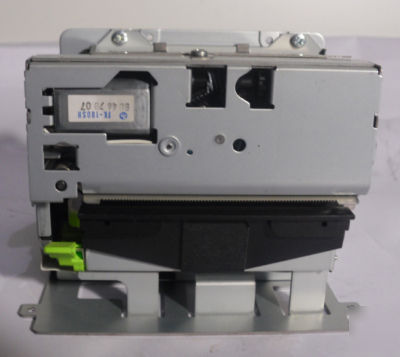

Epson eu-T332C-001 80MM 24V thermal kiosk printer
EPSON EU-T332C-001 80MM 24V KIOSK PRINTER
The right choice for smaller kiosks
Compact and cost-effective, the EU-T300C kiosk printer is ideal for smaller kiosks and basic kiosk printing applications. Built with Epson s industry-leading printing technology and quality, the EU-T300C has proven its reliability in both indoor and outdoor environments.
The EU-T300C is a complete drop-in printing solution and comes with all the features you need most including: print speeds up to six inches per second, use of the same standard 80mm paper roll as POS printers and support for 2.4mil receipt paper to 7mil ticket stock. Other high-quality features include easy paper loading with semiautomatic loading function, near-end paper sensor, and a modular design for easy maintenance
The Epson EU-T300C kiosk printer comes with Windows drivers, a built-in USB interface and a command protocol based on the ESC/POS standard. In addition, it features flash memory for logos and graphics
Industry-leading reliability and service
Epson kiosk printers are being used successfully worldwide for a wide variety of kiosk applications from banking and quick-service restaurants to entertainment and retail.
* Fast printing speeds up to
* Supports 2.4mil receipt paper to 7mil ticket stock
* Easy paper loading with semiautomatic loading function
* Modular design for easy maintenance
* Wide range of cost-effective service options
All steel chassis and high quality components
80mm (3.1 inches) standard, widths from 58mm 82.5mm available
Head motor: 24 vdc 10%, Circuit 5 vdc 5% (supplied by board)
Print speed control for low power consumption model
Paper end, black mark and paper low: photosensor;
Platen open, cutter blade position: micro-switch;
Print head temperature: thermresistor
Mechanism (MCBF) 37 million lines
Thermal head 100km/100 million pulses
Autocutter Exceeds 1.0 million cuts
Uses PS-180, low-cost 24 vdc power supply
32-bit 20 MHz Toshiba TMP 94 Series
4 Mbit flash ROM, host or network upgradeable
192k usable for non-volatile for downloadable logos and special characters
Semiautomatic loading or manual, back feed is possible
Epson industry standard ESC/POS , WIN 95/98/2000/NT 4.0/XP, Linux and exclusive Windows Status Monitor Program (API)
83mm (3.3) inch outside diameter, uses standard POS roll
Paper out, Black mark, Paper low
We have tested this product to the full extent of our in-house capabilities.
