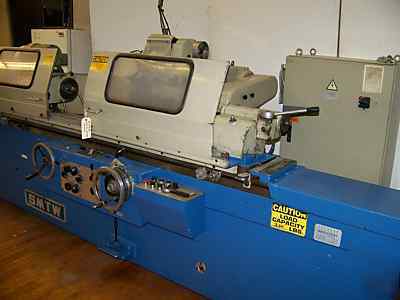

Smtw 12" x 60" cc universal cylindrical grinder, 1989
1 - (used) SMTW Model 1432A-1500, 12" x 60" centers universal cylindrical grinder complete with all motors and controls for operation on 220-3-60 AC. General specifications are as follows:
Height of table surface to spindle centerline - 7"
Distance between centers - 60"
Grinding wheel size - 16" x 2" x 8" bore
Grinding wheel speeds - 840 & 1680 RPM
Wheel head drive motor - 5/7 HP
Grinding wheel head swivel - +/- 30 degrees
Work head speeds - 0 to 260 RPM
Work head swivels - +/- 90 degrees
Hydraulic table traverse rates, infinitely variable - 1 to 131 FPM
Floor space, working area - 180" x 96"
Approximate weight - 8,000 lbs.
The machine is equipped with all motors and controls for operation on 220-3-60 AC. The machine is a straight 220V machine. If other voltages are required, we suggest a set up/down transformer be
used. The drive motor and swing down attachment is on the machine - you add your spindle. (The bore of the attachment is 3.125+") There are (2) 2-point work rests, (1) holder for wheel dresser, (12)
wedge style level pads, wheel nut wrench, wheel balance arbor, (1) wheel mount. Machine bears serial number 609, new approximately 1989. The machine can be seen under power on our floor . Our
looking. Jon Hebert (***)-825-1511 ****@bellsouth.net
