> Sherline milling machine 2000A package w/accessories
Sherline milling machine 2000A package w/accessories

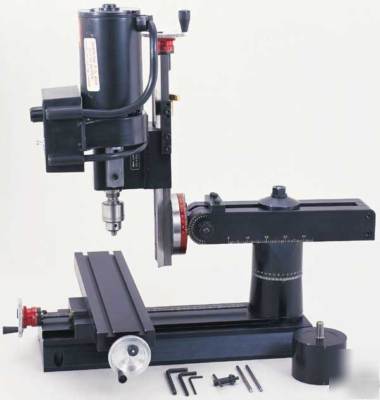

This is the "A" Package which includes:
Model 2000 (2010) 8-direction vertical milling machine (with 14" base, adjustable "zero" handwheels and laser engraved scales on base and table)
P/N 3013 step block hold-down set
P/N 3021 3-pc. center drill set
P/N 3060 3 pc. mill collet set
P/N 3072 Jacobs 1/4" tailstock drill chuck w/ key, #1 Morse arbor with drawbolt
P/N 3079 3/8" end mill holder
P/N 7401 6-pc. 3/8" shank double ended end mill set
P/N 5327 Sherline Shop Guide book
The 2000-series 8-direction mill was designed to take Sherline tools into the next century. Patterned after the movements of the industry standard for full-size mills, the Bridgeport mill, the column has been redesigned to offer four additional directions of movement compared to other Sherline mills. A modified rotary column attachment allows the Z-axis column to tilt from side to side up to 90 . A laser engraved angle scale makes setting the tilt angle easy. As on the rotary column, a clamping ring design locks the column securely at the desired angle. On the back side of this special rotary column attachment is a knuckle that allows the top of the Z-axis column to be tilted either toward or away from the operator. Laser engraved scales indicate movement up to 90 in either direction on this axis.
In addition to the side-to-side rotary tilt movement, the new column base offers a center pivot lock that allows the ram to be moved both in and out as well as swung from side to side. In/out travel is 5.50" and side-to-side motion is indicated by laser engraved scales showing up to 90 of movement either way. These four movements are in addition to the standard mill s X-, Y-, Z-axis travel and headstock rotation movement, giving a total of eight directions of motion or tilt. This much versatility puts the Sherline model 2000 mill in a class by itself in this size range. It is a fully functional shop mill that fits on a tabletop and stores on a closet shelf. When used with accessories like the tilting angle table and rotary table, the machining possibilities of the mill are limited only by part size and the extent of your imagination.
The 2000-series mill base has been extended an additional 2" over the Model 5400/5410, extending the Y-axis travel to 7.0" (178mm). This was done to accommodate the pivoting mechanisms and to take advantage of the increased arm movements. Like the deluxe Model 5400/5410 mills, all handwheels are resettable to zero at any time.
The 8-direction mill includes the same laser engraved scales on the base and table as the 5400-series deluxe mill package. Also included is a 1/4" Jacobs drill chuck and key. (The headstock spacer block is not included on the 2000-series mill, as the ram travel makes it unnecessary.)
All Sherline mills feature precision machined dovetailed slides with adjustable gibs, permanently lubricated spindle bearings, adjustable preload anti-backlash feed screws and a high-torque 90 VDC motor with electronic speed control. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is also available to provide extra torque at low RPM if needed.
At first glance, a vertical mill looks similar to a drill press, but there are some important differences; such as, a spindle that can take side loads as well as end loads and an accurate method of moving the work in relation to the spindle on all three axes. Sherline milling machines can perform all of the tasks and operations that a large commercial machine can perform. Operations such as fly cutting, precision drilling, and boring are all routine tasks for the Sherline mill. Because the tool turns rather than the work, much larger parts can be worked on in a mill, and these parts need not be round. The work is securely held, thus extremely accurate hole patterns can be drilled or bored. The longer X-axis throw also increases the machine s versatility over that of the lathe with the vertical milling column attachment. It is an extremely rigid, accurate tool that accomplishes tough machining jobs with ease.
Sherline milling machines are offered in four models and can be purchased in either inch or metric versions. The inch models have their feeds calibrated in .001" increments, while the metric model is calibrated in .01mm increments. The machines are equipped with a high-torque DC motor with variable speed control. This speed control is internally equipped with a converter that automatically adjusts between inputs of 100 VAC to 240 VAC, 50-60 Hz. without loss of torque. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is available for providing additional torque at low RPM.
Max clearance, table to spindle
Throat (without headstock spacer)
Throat (with headstock spacer block)
Movements in addition to X-, Y- and Z-axes
Headstock rotation 90 left/right
Headstock rotation 90 left/right, column rotation (90 L/R), column pivot (front/back), column swing (90 L/R) and 5.5" column travel (in/out)
90 volt DC with electronic speed control automatically converts any input from 100 VAC to 240 VAC, 50 or 60 Hz. (See motor specifications)
*Overall dimensions include motor and speed control
