Automatic 110V ac power controller,timer,4 outputs,


Automatic Bakeout Power Controller,Timer,4 Outputs
Vacuum,Processing, Heating, Other,3 Sensors,1200Watt,Manual

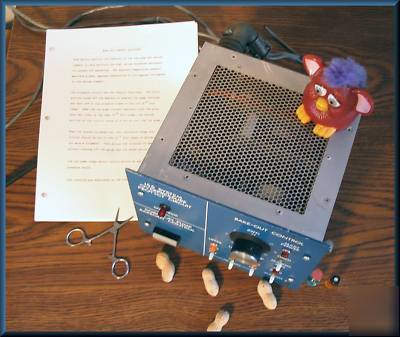

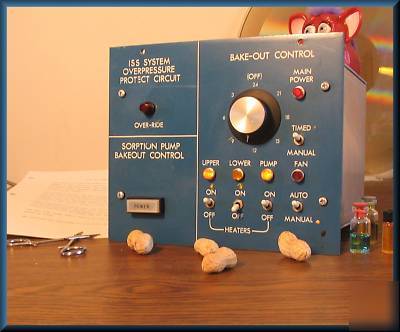

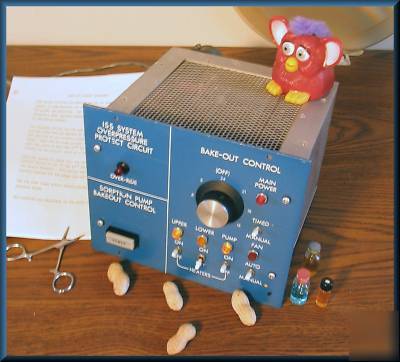

Very versatile,compact Power Controller for providing up to 1200 Watts of 110V AC power to 4 different devices, such as heaters, motors, etc. Normally used for automatic Bakeout of Vacuum systems with sensors from vacuum pressure readout and two other detectors, normally two ThermoCouples ( not supplied but available ). The individual heaters are not supplied but can be if requested. The system can be operated in the Automatic mode and turned on and off by the sensors; or any of the output turned on and off in a manual mode with a built in timer up to 24 hours.

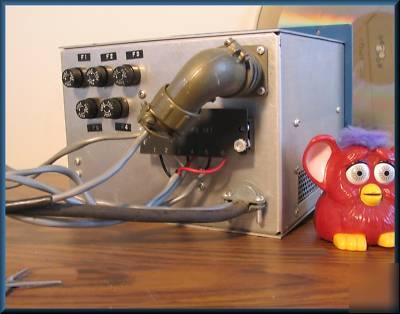

The device also controls a remote cooling fan if needed. Normally, individual heaters are 200 to 400 Watts each. The separate heater, labeled Sorption pump can actually be connected to any other heater or device. A complete operating manual with schematics is included. Each output is individually connected through a Terminal Board in the back and each output has a protective Fuse and separate calibration adjustment. Normal temperature settings are about 150 C.

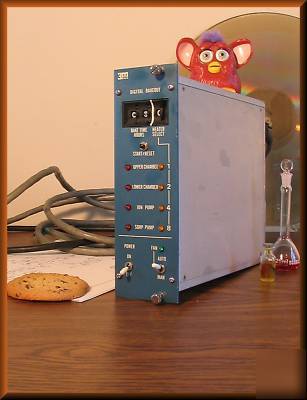

Excellent for a variety of uses other than just vacuum bakeout. Includes a standard grounded Heavy Duty 110V power plug. Overall size is about 8" x 8" x 6" and can be used stand-alone or mounted in a panel. We also have a similar unit that operates by Digital Thumbwheel settings as shown in the last photo but not included here. #1361
