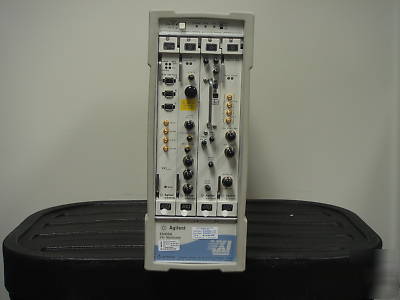

Agilent 89641A vector signal analyzer 6GHZ
The Agilent/HP 89641A 6 GHz Vector Signal Analyzer features unique error analysis tools, including adaptive equalization, to help you find and analyze problems with your WLAN signals. These problems include symbol timing errors, filtering errors, DAC overflow, incorrect sinX/X compensation, as well as RF problems such as IQ imbalance, quadrature skew, and IQ offset. The Agilent/HP 89641A PC-based vector signal analyzer (VSA) offers DC to 6 GHz frequency range and 36 MHz analysis bandwidth for measuring GSM (EDGE), cdma2000, W-CDMA, digital satellite video and other satellite signals, LMDS, 802.11a/b/g wireless LAN, Bluetooth systems and more. The Agilent/HP 89641A is housed in the Agilent VXI chassis and requires an external PC to operate.
* Advanced analysis and troubleshooting of WLAN modulated signals.
* DC - 6.0 GHz frequency coverage with 36 MHz of analysis bandwidth.
* Optional second IF/baseband channel for direct baseband I & Q input.
Agilent's 89641S vector signal analyzers are VXI based systems. These versatile systems consist of several VXI modules integrated at the factory. They offer a minimum of 36 MHz of analysis bandwidth and up to 6 GHz tuning range in 4-slot, 6-slot, and 13-slot VXI mainframes. The 89600 VSA software is a standard part of these systems.
