New shop fox® M1018 mill / lathe combo ( )

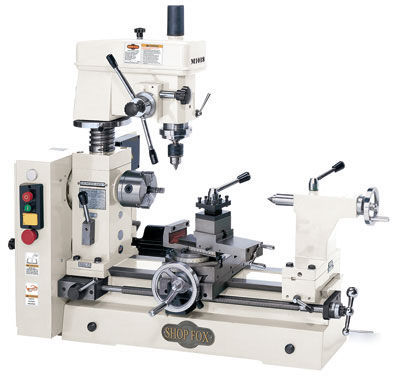

M1018 - SHOP FOX Combo Lathe Mill-Small
Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads, drilling and milling small projects, this combo lathe is packed with extra add-ons like a 4-way turret tool post, 9-1/2" faceplate, 4" 3-jaw chuck, and a built-in rotating vise. Features a 16-1/2" swing over bed, 11-1/2" swing over saddle, 19-3/16" distance between centers, 3/4" spindle bore, and MT #3 tapers.
* Cuts inch and metric threads
* Motor size: 3/4 HP, 110V, single-phase
* Swing over saddle: 11-1/2"
* Distance between centers: 19-3/16"
* Lathe spindle taper: MT #3
* Mill/Drill spindle taper: MT #3
* Tailstock barrel travel: 1-1/2"
* Cross slide travel: 4-1/2"
* Number of Mill/Drill speeds: 14
* Mill/Drill speeds: 117, 150, 220, 290, 276, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 RPM
* Lathe speeds: 160, 300, 375, 470, 600, 870, 1360 RPM
* Thread range (inches): 27 @ 8 - 120 TPI
* Thread range (metric): 18 @ .2 - 3.0 mm
