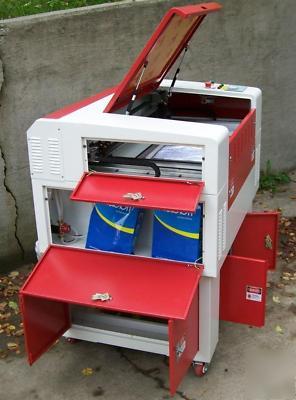

Cnc rabbit laser engraver cutter 600X400MM 40WATT 24X16
Laser Engraver - RL6040 Laser Engraver - RL6040
* High Quality / High Speed / Great Price
* Makes Professional Quality Affordable..
* Adjustable speed and power settings
* Compatible with Corel, AutoCAD and many other file formats
* Cuts and engraves any NON-Metal materials
* 40 watt laser, 600 x 400 mm travel
* Enclosure has lots of space for tall/thick materials
* Pass-thru door for long items
* One Year Warranty included
* LaserCut 5.3 Software and USB connection
Can be delivered within a few days!
The new 600 x 400 mm (23.6 x 15.74 inches) Laser engraving and cutting machine stands ready to improve your productivity and streamline your operations. It's perfect for either the business owner or the At-Home professional who needs a quality laser machine at a great price! This high quality machine is perfect for processing highly intricate designs on a variety of materials.
Cutting and Engraving materials: Bamboo, jade, marble, glass, crystal, plastic, garments, paperleather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and othe non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Applications of Laser machines - Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.
Comes with everything you need to get started: Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, Lasercut 5.3 software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (40 Watts), computer system with LCD monitor, Machine operation Manual, USB Communication cable.
PRODUCT FEATURES AND SPECIFICATIONS
* CNC Laser Engraving and Cutting Machine
* Maximum power Consumption - approximately 700 watts based on power and speed settings
* Input Electricity - 120VAC 50/60Hz (using 120/240 VAC transformer)
* Compatible with Windows 2000, XP Home and Pro, and Vista (32-bit)
* Application Software: LaserCut 5.3 which supports files: BMP, DXF, EPS, and many more.
* Corel and AutoCAD Drivers included Free
* Computer Interface - Dedicated Leetro motion controller via USB connection, 128 MB buffer, LCD Display
* Key lock for safe maintenance, Emergency Stop for immediate issues

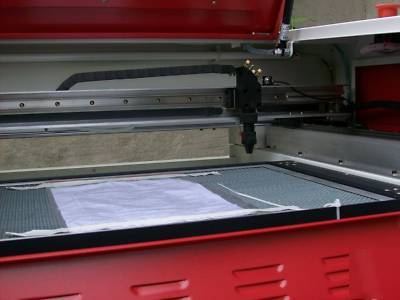

* With laser tube coolant flow system, motorized(up/down) work table, honeycomb work table.
* Table Material hold down - Vacuum through Honeycomb Mesh Table
* Utilize to cut and engrave all kind of non-metals. (.and some choice metal films)

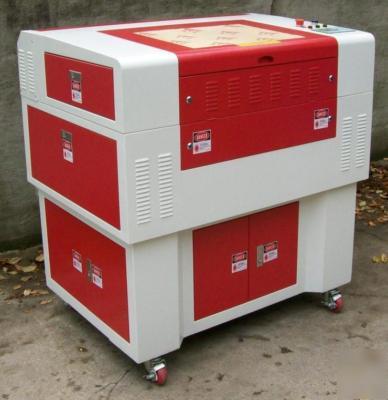

* Machine Size: ~44"L x 32"D x 46"H inches
* X, Y Working Area - 23.6 x 15.7 inches (600 X 400 mm)
* Max Table Size - about 25 x 17 inches
* X, Y axis Transmission System - gantry belts
* Z axis Transmission System - 3-phase motor and chain to jack-screws
* Y & X Slide System - Precision Linear Guide Bearings on X and Y
* Electronics Drive System - Micro Step Drive System with Bipolar stepper motors
* Machine frame - Welded Steal / Sheet Steal

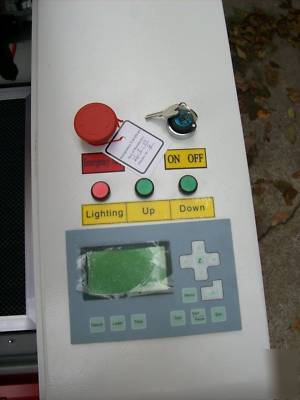

Easy to Use LCD Control Panel with E-Stop and KeySwitch
User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the XorY axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.

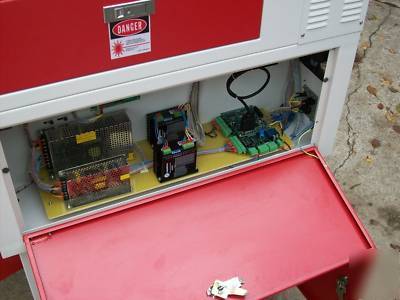

Dedicated MicroProcessor Controller for great performance
The heart of the laser machine is the industry leading Leetro controller. The 6515 controller is connected to the computer by USB connection. The Computer downloads the project to the 6515 Controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Leetro controller has 128MB RAM onboard to hold many of your largest projects without re-downloading from your computer.

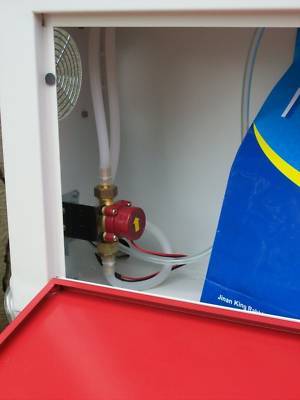

The laser machine can be equiped with a chiller or water pump and tank. In either case, the coolant must keep the laser tube from over heating. This check sensor ensures the laser will not be allowed to fire without proper coolant flow. It is typical for us to use a mixture of glycol (or Antifreeze) and water as the coolant fluid.
The air pump is used for three basic reasons. The primary reason is the push fumes away from the laser's focal lens. This protects the lens from contaminants which could destroy the lens. The second function of the air pump is to push air into the material's kerf as created by the laser beam. Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material. The third reason is that the air will help to cool the material. If the laser cut/engraved material stays hot, then it could warp or shrink. This air pump is a diaphram style which does not require oil. Oil or water in the air line could be projected directly onto the focal lens. This air pump has a higher air flow rate and is quieter than other piston stroke designs.
The vacuum blower creates an air flow to remove dust and fumes from the work area of the laser machine. It is important to remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroying the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy. The blower can also be connected to a vaccum box to pull air through the work material.
The air that exits the laser machine can be controlled by this vent damper. It allows the operator to select what proportion of air can be pulled from above or below the work surface.

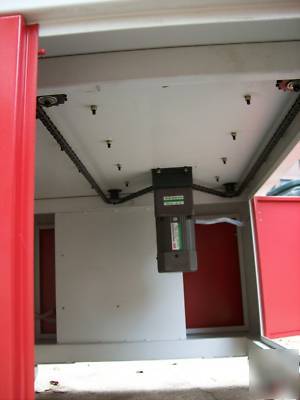

This motor is used to move the Z-Axis table/surface height. The maximum space available under the laser flying head is about 10 inches. This motor moves the height with the simple push of the button. The motor uses a metal chain to turn the four jack-screws, one at each corner of the work table. This metal chain design is superior to all other laser machine table deisgns that use stepper motors and rubber belts to lift their table. The stepper motors do NOT have the strength to lift a loaded table and the rubber belts are prone to stripping teeth or skipping out of alignment.
The Z-Axis motor controller board uses Solid State Relays to switch motor on, off and control the direction. The solid state relays are quieter than normal relays, controlled by a smaller power source, and last longer.
The limit switches prevent the axis from attempting to go beyond the mechanical limits of the machine. Some machines can be equipped with autofocus sensor which ties into the control board. The sensors for the X and Y axis are non-contact sensors which yeild a more repeatable position over the life of the machine.
It is always nice to check on the progress of the project that is currently running. The laser machine has a viewing window through the main access door ...and this interior light works great for providing enough light to see what is happening inside.
The laser machine frame is built with doors that allow materials to extend out the front and/or rear of the machine. The is helpful when engraving or cutting material that cannot fit completely inside the machine. Examples: Engraving pictures onto a bathroom shower door. Rolls of fabric threaded into the rear door, engraved or cut, and then pulled out the front door. Engraving the front door to my house. Engraving very large mirrors or sheets of glass. No limits to the imagination.
The various models of laser machines can weigh from 250 to more than 1200 pounds. Every machine is equipped with castor wheels to make it easier to move it around the workshop or office.
Every laser system from Scottware comes with a computer system. The laser system can be setup on most any newer computers(including laptop computers), but we to make this a truely turn-key solution. We want to ensure that we provide everything that you need to start your business running immediately. This computer system includes a Dell Optiplex GX280, Windows XP-Pro, 2.8 GHz Processor, 40GB Hard Drive, 1 GB RAM, Keyboard, Mouse, 17 inch LCD Monitor, and accessory cables. The laser machine comes with the Software CDs, but we install all of the needed software and drivers onto the computer for you. We even add some of the most common freeware utilities to help your business move faster.
For more pictures and descriptions, please visit our web site at http://www.scottware.net/Lasers/IG_RL6040.html .. the image galleries.
For more examples, please visit our web site at http://www.scottware.net/Lasers/SamplesExamples.html ..the Samples and Examples pages.
Many companies purchase a laser machine that is slightly bigger than what the current needs are demanding. This gives the company room to grow. You might also wonder if the machine itself would even fit into your business... Do you have small doorways? NOT on the bottom floor of the building? Irregular doors or narrow office hallways? Don't worry about that. This laser machine is designed to remove the base section and take it through your office to the back room. Check out the web page describing how we have done a "narrow move".
One year limited warranty on mechanical parts.
90-day limited warranty on mirrors, lenses, and laser tube.
Scottware LLC agrees to repair or replace, at its option, any defective part or component covered by this warranty, provided there is no evidence of abuse and we first receive written notice of a defect within the applicable warranty period. Wearable items are not covered under warranty. Items not covered under warranty are fuses. This warranty extends only to the original purchaser. Scottware LLC makes no further warranty of any kind and specifically disclaims any warranty of merchantability for a particular purpose. The warranty does not cover damage from electrical surge, brown-out, damage by fluid (water, oil, cleaners, rain, etc.), or damage caused by improper use or maintenance.
We offer email and phone support which includes help to cut and engrave text and graphics which are compatible with the software that is included with this laser machine. That single software package is called laserCut 5.3. This software easily imports images from MS Paint, AutoCAD, and Corel. Due to complex nature of art styles, we do not provide support of how to import complex images. The product manuals and instructions are included with delivery of the laser machine.. Additional links for downloading the manuals and instructions are on our web site in PDF Format.
* Your machine will be rechecked (again) before it leaves our facility. If a technician is delivering to your business, then we will coordinate the delivery schedule to accomidate both business schedules.
* US Currency ONLY. No refunds for deposites.. All Sales are final.
* Any bank transfers of funds will require a minimum number of days to allow the finances to clear banks.
* If paying in person at pickup,we can accept Business Check, Traveler's Check, Cashier's Check, or Money Orders. Cash is always best.
http://www.scottware.net 3503 Carol Ann Lane
Please also notice that we have more laser engraver/cutter machines in other major sizes...
RL-40-6040 *40 watts, 24x16 inches work area
RL-60-9060 * 60 watts, 36x24 inches work area
RL-80-1290 * 80 watts, 48x36 inches work area
RL-120-1290 *120 watts, 48x36 inches work area
RL-150-1290 *150 watts, 48x36 inches work area
RL-80-16090 *80 watts, 62x36 inches work area
RL-80D-16090 * Two cutter heads each with 80 watt laser, 62x36 inches work area
******** Please call for a quote..******
Questions posed by other sellers. ..and things to look out for.
Q: Am I going be able to operate the machine?
A: Yes, you can operate the machine, because the software is made easy to use, you will be provided with user manual on how to operate the software, I will be happy to answer emails within a reasonable amount of time, you can call any time between 9:00 AM to 9:00 PM if you have a quick question..I am sure I can help. (***)-320-2748.
Q: Am I going be able to trouble-shoot problems?
A: Yes! The standard manual includes a set of instructions to trouble shoot problems in the software, optical system, mechanical system & electronic system. Use common sense and really get to know your machine. Be aware of when it starts to act different and KEEP IT CLEAN. The easiest way to fix a problem is to ask me for some help. .. send an email.
Q: Am I going to be able to change parts if the machine down for any reason?
A: Yes. The wiring is organized and simple to trace. No manufacturer likes to give out a schematic of their products (makes it easy to copy the machine) but replacing parts is rather easy. There are labels on each device and connectors for everything. When you face a problem with your machine, I can help you troubleshoot the issues and identify which part needs to be replaced. Many of the required replacement parts are on the open market or can be gained from the manufacturer at no charge. I can help with that.
Q: Am I going to have a technician at my site fixing my machine, if needed?
A: Yes, you can have a technician at your site, some conditions apply .. and charges too. call me. (***)-320-2748.
Q: Am I going to be able to have all the spare parts for the future?
A: Yes! We sell these laser machines here. We have a stock of spare parts at my office in Ohio. You can otherwise purchase ALL of the required replacement parts on the open market or can be gained from the manufacturer at small charges
Q: "Somebody else has a similar machine for $5000. Can you drop your price?"
Q: Is this a Glass Tube Laser?
A: Yes.. This is a glass laser tube. the replacement 60Watt Laser tubes cost about $350 (glass) .. The RF metal cartirdge lasers cost MUCH more.. several thousand dollars for just the laser cartidge replacement or a few thousand dollars for the rework of your existing RF metal cartridge laser. The manufacturer states the expected life of this glass laser is 1300 to 3000 hours. The RF Metalic cartridge should last 4 or 5 times longer, but costs 20 times as much.. This is a great machine for small businesses that can't afford (or don't want to pay) the high costs of US-made mainline lasers.
Q: What is the projected life of the laser tube and mirrors? What is the replacement cost and availability of both? Oct-22-08
Q: I am needing a laser to cut out shapes in plastic styrene. 1 mm to 3mm thick. What would be the best system to use?
A: This sounds like a trick questions. How big are the styrene sheets? How detailed are the shapes? How fast do you want to cut? I am sure that this 60 watts and 24x36 inch work area should be great for a project.. It depends on it the project gets bigger.
Q: Wow, I'm very impressed with the level of detail and explanation that you provide in your listing. Since you are knowledgeable about laser engravers, I'm hoping you can answer a question. I'm looking for an easy way to 'cut' 4 inch letters of the alphabet out of sandpaper using a windows based font. Initially these would be for use at my wife's preschool, but I could see manufacturing more for resale. Would you recommend this machine or anything else that might be smaller?
A: You could easily use this machine. You could also use the smallest machine we have.. The FL-40A. It could cut the sandpaper without a problem.. and it will fit the size requirement. You should not need the high power laser, but you will need to go slower. There are many laser machines out there to do the job for you. I think I could set you up with a great solution. I have some software that will convert True Type Fonts to DXF.. you can then imprt the letters into the cutting software.. Should be pretty easy.
Q: You mention that this is your 4th machine. Do you have any smaller machines available? I only need a 40-50 watt machine with a 12"x24" table.
A: This machine is a great size for small businesses. Some projects need only a small machine.. but projects often get larger as the company grows. I can order laser machines that are smaller than the machine listed here. I have already ordered many machines to be delivered soon. One model is a desktop laser: 50 watts, 11.8x19.7 inches work area, USB, 55mm engrave/cutting lens (55, 63, 110 mm lens options). Another model is a small rolling cabinet laser: 40/60 watts, 15.7x23.6 inches, USB or PCI control system, 55-63-110mm lenses available, fine mesh table. I would be happy to talk with you about these machines.
Q: Can this laser engrave on clear arcylic? We are using a CNC router to engrave letters and graphics on 1/2" thick clear acrylic. Can the laser cut down to about 1/4" and make a fairly smooth surface at the bottom of the cut?
A: I have never tried to cut down 1/4 inch into acrylic..as if to be the router. That sounds like the basic "grade engrave" function. The depth of the cut is dependant on the power and speed setting. I don't know how smooth it will be. I have done the "grade engrave" on wood and rubbers. I haven't tried it on plexiglass or acrylic.. I will check it out soon. (Update*** It has been tested to engrave name tags and repeatably cuts to a desired depth. The deep cutting causes debris to accumulate to the near surfaces. The surface at the bottom of the cut is quite textured like stipple art. Pictures to be posted on the web site.)
