Whitehall extremity whirlpool model e-45-m

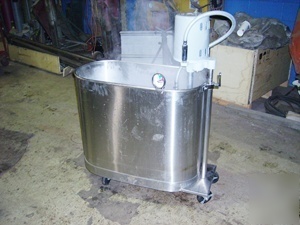

Whitehall E-45-M Mobile Whirlpools
recommended for treatment of the upper extremities
and the lower leg including the knee.
seamless welded construction, fabricated from heavy
gauge, type 304 stainless steel, polished to a satin
finish. Tank rim is reinforced with a concealed stainless
steel rod. Tank is fitted with an auxiliary drain
valve. Tank bottom is a seamless, rounded covered
design to minimize bacteria buildup.
models. Rear pair of casters are lockable for
stabilizing whirlpool during treatment.
Turbine Raising and Lowering Device
adjustment of desired height and direction of
water agitation towards the area of the body to be
treated. It is spring balanced and provided with a
functions both as agitator and
emptying device. It is equipped with Underwriters
Laboratory listed 1/2 HP jet pump motor protected with
an ABS plastic shell, and automatic thermal overload
protector, and lifetime-sealed bearings. All parts
contacting the water are stainless steel, chrome
is provided with a dual scale,
adjustable calibration, and a stem inserts into a
retainer to prevent rattle during whirlpool agitation.
Provide Whitehall Mobile Whirlpool (specify model
number and options) with a 45-gallon capacity,
32 L x 15 W x 25 D. Whirlpool shall be fabricated
from heavy gauge, type 304 stainless steel.
Construction shall be seamless welded and exposed
surfaces shall be polished to satin finish. Tank shall
have a reinforced rim and shall be fitted with an
auxiliary drain valve. Bottom of tank shall be a
seamless, rounded coved design to minimize bacteria
build up. Whirlpool shall have heavy duty swivel
casters with locking device on rear pair of casters.
Provide aturbine assembly with raising and lowering
device which functions both as agitator and emptying
device, permits adjustment of desired height,
direction of water agitation, and can be locked into
place. Turbine assembly shall be UL listed 1/2 HP
jet pump motor with automatic thermal overload
protector, and lifetime-sealed bearings. Provide a
thermometer with a stem retainer to preventrattle
when whirlpool is in operation.
