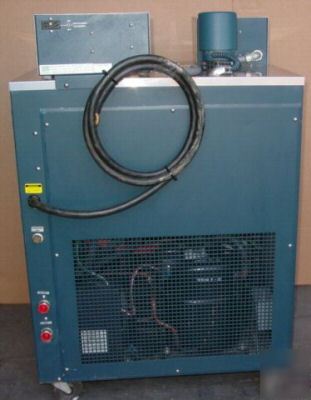

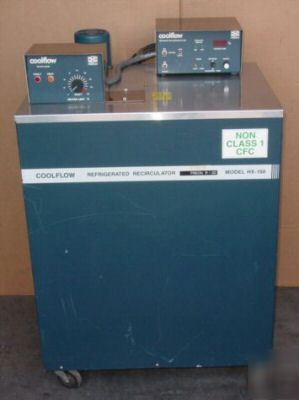

Neslab hx-150 coolflow refrigerated process chiller
This listing is for a refrigerated recirculating chiller.
* Make: Neslab (now Thermo-Fisher Scientific)
* Controller Part # 304216060203
* Power: 208/200V / 60/50Hz / Single Phase / 14 Amps
The NESLAB HX-150 process chiller provides 4.5kW of reliable cooling for your critical process.
* Flexible configurations tailored to your application
* Keeping your process consistent for the results you need
* 2 controller options: Simple and Cost Effective or Sophisticated and Powerful
* Air or Water Cooled Condensers depending on your facility requirements
The HX-150 is a versatile, highly configurable chiller that can go from a simple workhorse to a highly sophisticated chiller via the many options available. This makes it perfectly suitable for use in laboratory, laser, industrial, semiconductor, or medical applications.
The HX Series offers dependable performance by using the highest quality materials, and a design that will be trouble-free for many years.
* Stainless Steel reservoir for high fluid compatibility, long life, and easy cleaning.
* Rugged pumps and an integrated flow control valve ensures your instrumentation receives the proper flow and pressure.

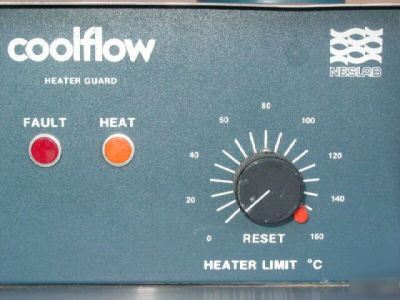

* User adjustable low and high temperature safety and low fluid level safety with visual alarm.
* You decide if you prefer the HX to continue to run in a fault condition or automatically shut the HX down.

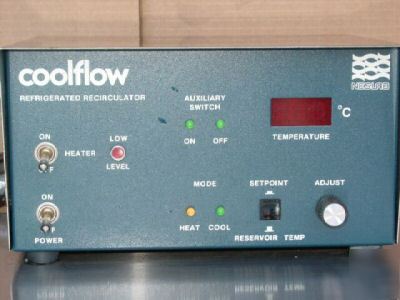

* Choice of simple or sophisticated controller depending on your process requirements.
* Cooling Capacity 4500 Watts at 20 C (60Hz)/ 3735 Watts at 20 C (50Hz)
* Temperature Range : +5 C to +35 C
* Optional Temperature Range : +5 C to +90 C
* Pump - 60 Hz Performance: PD-2 (3.3 gpm at 50 psi) or CP-55 (10 gpm at 40 psi)
* Pump - 50 Hz Performance: PD-2 (2.8 gpm at 50 psi) or CP-55 (10 gpm at 27 psi)
* Reservoir Volume: 8 Gallons / 30.3 Liters
* Condenser : Air Cooled (Water Cooled Available)
Further information is located at http:// /com/cda/product/detail/1,,1000001155253,00.html
