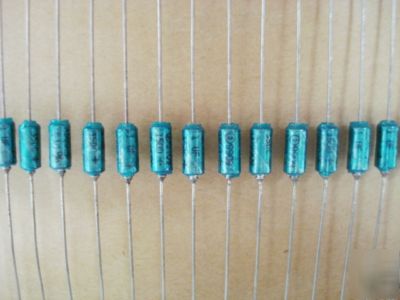

Capacitors 1 uf 35 volt 10% solid-electrolyte x 10 pcs
Capacitors 1 uF 35 Volt 10% Solid-Electrolyte TANTALEX , Axial-Lead
Solid-Electrolyte TANTALEX Capacitors
Terminations: Tin/lead (SnPb), 100 % Tin
These high performance, hermetically-sealed
TANTALEX capacitors have set the standard for
solid-electrolyte tantalum capacitors for more
High capacitance, low DCL, low dissipation factor and
exceptional operating stability.
Performance and reliability have been proven in
commercial, industrial and military applications.
Available in four case codes and capacitors and are
supplied with plastic-film insulation.
Terminals are solid, tinned nickel wire leads.
The Military equivalent to the 150D is the CSR13 which is
Operating Temperature: - 55 C to + 85 C
(To + 125 C with voltage derating)
Capacitance Tolerance: At 120 Hz, + 25 C. 20 %,
10 % standard. 5 % available as special.
Dissipation Factor: At 120 Hz, + 25 C. Dissipation factor,
as determined from the expression 2 fRC, shall not exceed
the values listed in the Standard Ratings Tables.
DC Leakage Current (DCL Max.):
At + 25 C: Leakage current shall not exceed the values
listed in the Standard Ratings Tables.
At + 85 C: Leakage current shall not exceed 10 times the
values listed in the Standard Ratings Tables.
At +125 C: Leakage shall not exceed 15 times the values
Life Test: Capacitors shall withstand rated DC voltage
applied at + 85 C for 2000 h or derated DC voltage applied
1. DCL shall not exceed 125 % of the initial requirement
2. Dissipation Factor shall meet the initial requirement
3. Change in capacitance shall not exceed 5
CAPACITANCE ( F) CASE CODE PART NUMBER (1)
35 WVDC AT + 85 C, SURGE = 46 V . . . 23 WVDC AT + 125 C, SURGE = 28 V
1.0 A 150D105X0035A2 150D105X9035A2 0.5 2
