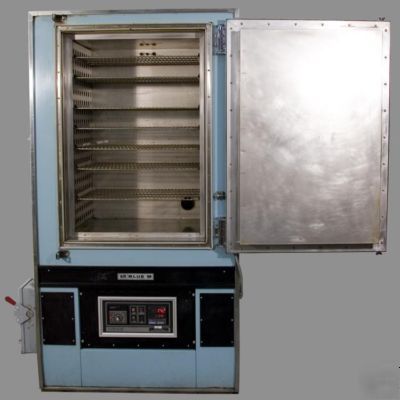

Blue-m dc-336-c-ST350 convection oven (343°c - 11CU ft)
Blue-M DC-336C Mechanical Convection, Horizontal Airflow Industrial Oven with Stat-350 Microprocessor-Based Single Setpoint Temperature Controller
This unit was removed right off the production floor. The oven is guaranteed to work.
Model Number: DC-336C (Now the model number is DC-336-C-ST350)
Temperature Range: 343 C / 650 F (Now they are rated at 350 C / 662 F)
Line Voltage: 208-240 V, Single Phase, 60 Hz
Cabinet Type: Floor Model - Single Door
* Believed to have the Inert Gas option added (Not positive but I believe that the copper piping on the back is for Inert Gas)
* 7 Shelves (Standard is 2 I believe)
* Overtemperature Protection
Blue M ovens have earned a long-standing reputation for exceptional performance, long service life and ease of operation over a broad range of applications.
Today, the Blue M standard mechanical convection oven is ideal for a number of applications.
* Aging of Electronic Components and Devices
* And Many Other Process and Testing Requirements
Interior Cabinet Construction:
All-Welded heavy gauge, reinforced type 304 stainless steel for maximum heat and corrosion resistance.
Stat-350 is a Microprocessor based steady state temperature controller with full PID control. The controller features a large display that simultaneously displays process temperature and setpoint temperature. Other features include SUPER control which improves performance providing superior ramp times with minimal overshoot. Over-temperature protection is standard, provided by an FM-approved limit control with independent sensor and power contactor.
Heating and Air Delivery System:
A direct drive ball bearing 1/2 HP motor with a balanced stainless-steel multi-bladed blower wheel. Elements utilize Nichrome wire strung through high temperature, high dielectric strength refractory disks. 3" air intake and 3" air exhaust powers provide fast cool-down from your process temperature.
Rugged, Industrial Construction:
* Heavy Guage Steel Exterior - all exterior panels at least 16 gauge
* All Welded Construction - contributes to Blue M's legendary strength and reliability
* Baked on Blue Enamel Finish - for long lasting corrosion protection
* Type 304 Stainless Steel Interior - for excellent corrosion resistance
* Four Full Inches of Fiberglass Insulation - minimizes heat loss
* Exclusive Blue M Silicone Door Seal Design - for positive sealing of the door
Uniform, Accurate and Reliable Temperature Control:
* Horizontal Air Flow - assures uniform thermal performance under all loading conditions
* Double Plenum Design - tuned for optimal uniformity, removable for cleaning
* Exclusive Blue M Eterna Heating Elements - reliable, heavy gauge high temperature nickel chromium wire, low watt density for long service life, and much more!
Exclusive Blue M One Pass Air Flow:
* For control of your profile, including cool down
* Infinitely variable control for full recirculation to full one pass
* Multi-blade centrifugal blower with matched helical scroll
* Dynamically balanced for minimum noise and maximum reliability
Temperature Range: 15 C above ambient to +350 C (+662 F)
Uniformity: +/- 1% of setpoint
Resolution: +/- 0.1 C (or 1 F)
Performance Data (typical): Run-up to +300 C 60 min. (or Less)
*Empty chamber performance with intake & exhaust control and at rated voltage
Volume: 11.0 cu. ft. (311 liter)
Exterior Dimensions (Excluding Protrusions):
Electrical Service: 208 - 240 VAC, Single Phase, 60 Hz, 6.0 to 8.0 kW (33 / 36 Amps)
For Additional Pictures Please Click the Following Links:
* Picture 6 - Chamber, Door Open
* Picture 7 - Door, Door Open
* Picture 8 - Temperature Controllers
* Picture 9 - Inert Gas Inlet?
* Picture 10 - Oven Identification Engraving on Door
* Picture 11 - Serial Number Tag
