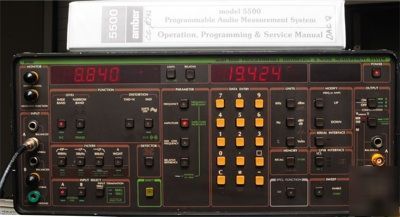

Amber 5500 programmable audio measurement system
Amber 5500 Programmable Audio Measurement System
SPECIFICATIONS* Signal Source Frequency Range 10 Hz to 100 kHz resolution to 0.005%* Amplitude Range 10 Vrms to < 1 mVrms open circuit* THD 50 Hz to 10 kHz <0.005% (-106dB)* Unbalanced, Floating, or Grounded Output (Balanced 600 ohms, Balanced 900 ohms, Unbalanced 50 ohms)
* Analyzer Section Frequency Range 8.5 Hz to >500 kHz* Level Range 100 Vrms to <10 uVrms (+40 dBV to -100 dBV)* Level Flatness +- 0.25 dB or better* Wideband Residual Noise (600 ohms, 20 Hz to 100 kHz, A weighting) <2.5 uV / -112 dBm* Narrowband Residual Noise (600 ohm, 1 kHz bandpass) <0.7 uV / -123 dBm* Frequency Measurement 9.5 Hz to 105 kHz, 5 digits* Accuracy better than 100 ppm* THD + N Measurement frequency range 9.5 Hz to 105 kHz* THD+N range >32% to 0.0000% (>-10 dB to -120 dB)* Fundamental rejection 120 dB or better* Standard Filters 400 Hz High Pass, 60 dB per decade, Butterworth Response* 30 kHz Low Pass, 60 dB per decade, Butterworth Response* 80 kHz Low Pass, 60 dB per decade, Butterworth Response This unit is model 5500-19732 s/n 5500-92481332, software revision 4.1Options: 001(high level balanced output), 009(Audio PB 20hz to 20Khz filter)), 002(IMD), 009(phase measurement), 201(high resolution fine tune), 054(?), 488(GPIB), 200(?).Operating , Programming and Service maual is included.Good working condition.
