#3X-3K abbey-etna reducing type tube mill line #25447

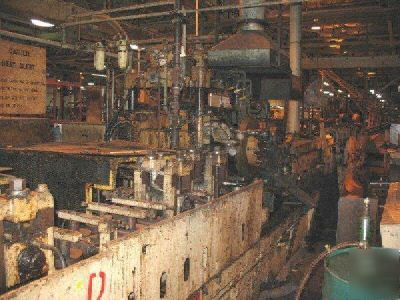

#3X-3K ABBEY-ETNA REDUCING TYPE TUBE MILL LINE
New 1970, Shop Number 11547, Model 3X-3K,
(1) 2500 LB Littell Double End Uncoiler
(4) Idle Side Roll Units (Cluster Unit)
(1) Idle Side Roll (Between Fins)
(1) Abbey-Etna/McKay 150 KVA Rotary Welder
(1) Turkshead 4-Roll Straightener
(1) Alpha Flying Cut-Off (Model FR6-2-300, S/N 45)
Tube Diameter, Maximum.................. .905" 22.9 MM
Tube Diameter, Minimum.................. .530" 13.5 MM
Wall Thickness, Maximum................. .114" 2.9 MM
Wall Thickness, Minimum................. .018" .46 MM
Material Yield, Maximum................. 50000 PSI
DT Ratio, Maximum....................... 60 to 1
DT Ratio, Minimum....................... 10 to 1
Mill Speed, Maximum..................... 60 FPM
NOTE: Machine Appears To Be In Good Condition
With Tooling To Be Determined.
PRICE: OHIO LOCATION.................... $225,000.00
