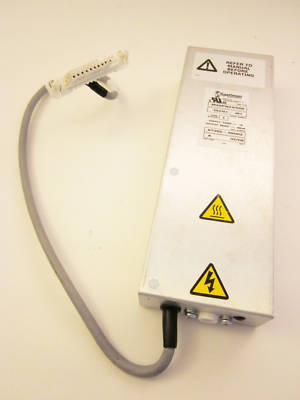

Spellman MX8 high performance dc-dc converter
8KV 25ms POLARITY REVERSING SPEED
PRECISION ANALOG VOLTAGE AND CURRENT CONTROLS
PRECISION ANALOG VOLTAGE AND CURRENT MONITORS
HIGH VOLTAGE INHIBIT CONTROL
Spellman's RoHS compliant MX8 Plus is a well-regulated
high performance fast reversible supply featuring a
25ms "hot switchable" polarity reversing capability.
The MX8 Plus's low ripple specification is typical of the
topologies that make Spellman High Voltage your ideal
choice for mass spectrometry applications; especially
security detection systems, dynodes, sample ionisation
as well as capillary electrophoresis and electrostatic
printing applications. The MX8 has been designed
especially for EI and APCI applications.
The MX8 Plus can be easily tailored to an OEM's
requirement, such as improved ripple performance, or
different voltage and/or current capabilities.
Line: < 0.1%% for 10% input voltage change
Load: <0.1% for 0 to full load
Line: 0.1% for +1V input voltage change
Load: 0.1% for full load to short circuit
0.05% per hour after 1 hour warm up
<25ms from command to 90% into 100pF load capacitance
Arc and short circuit protected
Output voltage must not exceed 8kV 250V
under any input or output conditions
1.48 H X 3.23 W X 9.45 D (37.6mm X 82mm X 240mm)
