26" doall vertical band type plate & block saw hyd tbl

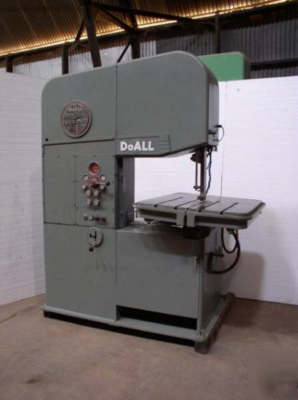

26" DOALL Model 26-3 Vertical Band Type Plate & Block Saw; with Hydraulic Feed Table
(1) Used 26" DOALL Model 26-3 Vertical Band Type Plate & Block Saw; with Hydraulic Feed Table; S/N: 55-57443
Throat Depth.................................... 26"
Work Height.................................... 13" (max.)
Guide Post Size................................ 1" x 2"
Table Size........................................ 32" x 41"
Table Travel..................................... 16" (nominal)
Table Capacity................................. 500 lb (nominal)
Table Tilt.......................................... 5 L - 45 R
Blade Length.................................... 156" (est.)
Blade Width..................................... 1/4" to 1 1/2" (nominal)
Wheel Diameter(2)........................... 26"
Blade Speed Range.......................... 40 10,800 F.P.M.
Main Drive....................................... 7 HP
Electrical Characteristics..................... 240/440 V.A.C.
Hydraulic Guide Post Positioning
36" Extended Table Feed (optional $4,250)
Overall Dimensions:.......................77" F-B x 58" L-R x 87" High
Weight:............................................3,000 Lbs (est.)
Price:................................................$9,450.00................F.O.B.................. Casa Grande, Arizona
