21 cu. ft. hosokawa nauta vacuum dryer-s/s-jkt #5443

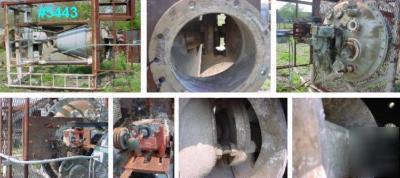

21 CU. FT. HOSOKAWA NAUTA VACUUM DRYER - S/S - JACKETED
1 - used 21 cu. ft. Hosokawa Nauta vacuum dryer/mixer. Model NX6A-12. Serial number 365004. Dome top with misc. inlets and sight glasses. Approx. 55 in. dia. at the top x approx. 73 in. long straight side. Outlet located at the bottom side of the cone wall. Stainless steel contact parts carbon steel jacket. Shell design pressure approx. 29 in. Hg / Hydro test approx. 30 psi pressure. Jacket design pressure approx. 45 psi. / hydro test approx. 90 psi. Internal and jacket rated at 60 deg. C. Built in 1976 by Hosokawa Iron Works Ltd. Motor (missing) rating: 55 kw (approx. 75 HP). Western 4-speed gearbox (S/N - 25865). Unit is mounted inside a steel structure which has a ladder for accessing the top of the machine. F.O.B. - Cleveland OH.
