Yokogawa TA320 time interval analyzer ta-320
Yokogawa TA320 Time Interval Analyzer!!

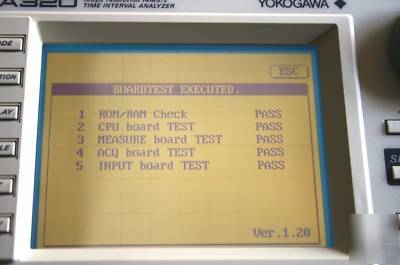

Removed from a local University Surplus, Power up and Pass Self and Hardware test. Also look to be in Great condition. Please look at the Pictures. We are unable to test out these units beyond what you see.
The TA320 has two sampling modes: "time stamp mode" and "hardware histogram mode". In the time stamp mode, the TA320 records both of elapsed time and measurement result. In this mode the user can observe period variations in measurements with time by using the TIME VAR button. In the hardware histogram mode, the TA320 acquires up to 99,999,999 samples. In this mode high speed statistical computation of a great number of samples can be implemented.
* Two Choices of Sampling Modes
The TA320 has two sampling modes: " time stamp mode" and "hardware histogram mode." The time stamp mode allows the user to measure both variables and the time that measurements are taken. Thus, the user can analyze variations in measured variables with time. The hardware histogram mode allows the user to sample up to 99,999,999 (108-1) data items, enabling high-speed statistical computation of massive amounts of data.
* A Wealth of Display Formats
Four types of display formats are available: histogram, time variation, list and statistics.
The user can save panel setup information and TIFF format screen image data, as well as measured data values, on floppy disks.
* External Arming & External Gating Functions
The external arming function allows control of the time to start measurement by means of external input signals. In addition, the external gating function is available to control the measurement time.
This function allows control of the time period that inhibits input signals from being captured.
The analyzer presents a maximum of 16 different histogram windows, enabling data analyses of rectangles, one by one, occurring in multiple numbers in a histogram

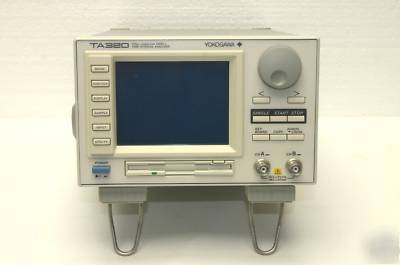

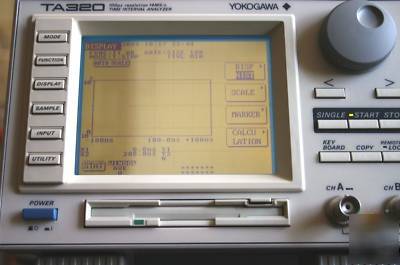

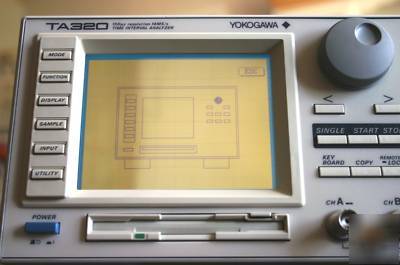

* Large liquid crystal panel, and an intuitive touch screen
* Input channels CHA, CHB, 3.5" FDD
Measurement data, information set on the panel, and TIFF format screen image data can be stored on a floppy disk.
FDD with MS-DOS format, supporting various modes.
Enables printout of screen images from an external plotter.
* External adjustment hole for calibration(10 MHz clock)

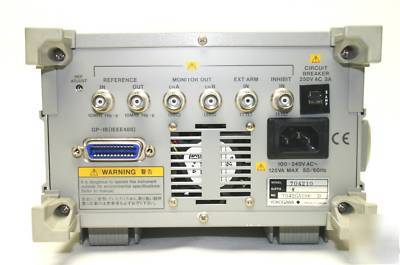

* 10 MHz reference input/output, monitor output A/B
Enables the CHA and CHB input signals to be output for monitoring.
This terminal enables the timing of the start of measurement to be controlled by an external input signal. It also functions as an external gate input terminal to enable the measurement time to be controlled.
Enables the time band during which the acquisition of the input signal is inhibited to be controlled by an external signal input.
* 100 V to 240 VAC free supply voltage input
* GP-IB interface (standard)
Conforming IEEE Standard 488.2-1987.
