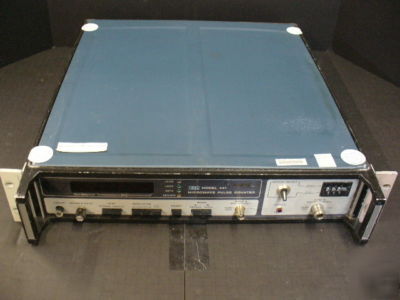

Eip 451 w/P2, P5 microwave pulse counter
Test Equipment Solutions Today
1755 E. Bayshore Road Suite 12A
90-Day Warranty and 5-day Acceptance Period Included
The 451 Microwave Pulse Counter automatically and directly measures the frequency of pulse modulated microwave signals between 300MHz and 18GHz and pulse widths of 100 ns, with no minimum or maximum pulse repetition frequency limits. Capable of measuring the frequency of CW signals, and carrier signals with FM modulation up to 40MHz peak-peak deviation at 10MHz modulation rates. Sensitivity is -10 dBm to 10GHz; -5 dBm to 18GHz. Input impedance is 50 ohms. Overload protection provided up to 1 W peak from 925MHz to 18GHz. Direct reading display with 10kHz resolution over entire operating range. Gate times are 100 s and 1 ms. Timebase is 10MHz stability of <3x10E-07/month. Display is 7-digit LED with fixed decimal point, leading zero suppression (except during no input signal).
No manuals or accessories are included unless shown in picture.
The foregoing warranty is in lieu and exclusive of all other warranties, whether express, implied or statutory, oral or written. Unless otherwise agreed in writing, Test Equipment Solutions Today does not warrant the merchantability of the components furnished or the equipment sold, or its fitness or suitability for any specific application or use. Test Equipment Solutions Today shall not be liable for any damage or losses regardless of reason or cause for its failure to discover, report, repair or modify latent defects or defects inherent in the design of the equipment.
