> Remcor cornelius ch CH551A dual fusing head chiller
Remcor cornelius ch CH551A dual fusing head chiller
This listing is for a recirculating (circulating) liquid chiller cooling system. These are current catalog on Remcor's website. They are also still supported be Remcor.
* Make: Remcor / Cornelius

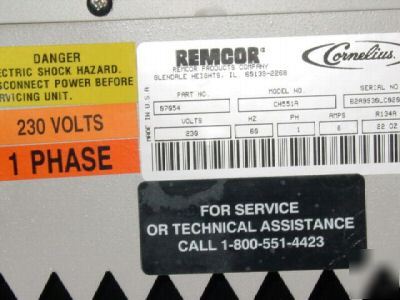

* Serial Numbers: 62A9930LC020, 62A9850LC070, 62A9850LC069
* Power: 230V / 60Hz / Single Phase / 8Amp
* Freon: R134A - Uses 20oz

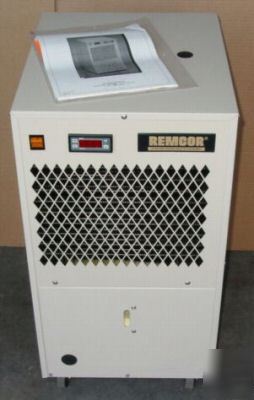

* Includes operating manual.
The REMCOR "CH" Series Liquid Chillers are specifically designed to cool clean liquid before it is circulated to the cooling application. The unit includes a complete refrigeration system and associated controls housed in a sturdy sheet metal enclosure with perforated panels for air circulation. Options include a reservior and a choice of pumps and temperature controls to provide a self-contained liquid cooling circulation system tailored to a particular closed loop or tank cooling application.
On closed loop systems the unit is provided with a pump and reservoir for recirculation of liquid from the chiller to the process. On tank cooling systems the unit is provided without the reservoir and the pump is optional for recirculation of liquid from the chiller to the tank. Control temperature is sensed on the outlet of the chiller for closed loop systems and it is sensed on the inlet of the chiller for the tank cooling systems.
Temp control options consist of a general purpose digital thermostat and an electronic differential thermostat to satisfy the termperature control requirements. Both options include a digital thermometer for monitoring system temperature.
Pump options consist of a small magnetic drive pump as standard with a variety of magnetic drive and positive displacement pumps available for particular flow and pressure requirements. And optional bypass valve is available for the pump circulation system (This valve is standard on units utilizing the positive displacement pumps). This can be used to adjust the pump flow and pressure to match process requirements. This valve also allows internal recirculation within the chiller in the event the chiller outlet is obstructed.
* Electrical: 230V / Single Phase / 60Hz
* Reservior Capacity: 3 Gallons
* Refrigerant-12 Charge: 1.75 Lbs
* Stainless Connections: 1/2" FPT
* Operating Liquid Temp. Range: 40deg F - 100deg F
* Dimensions: 16-3/4" (d) x 15-1/8" (w) x 28-1/2" (h)
This is used and in 'like new' condition. Guaranteed to be in proper, working order.
