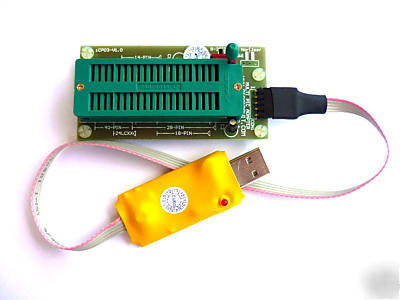

ICA01 usb microchip pic programmer set (icsp & adapter)
USB PIC Programmer Set (iCA01) provides complete solution for Microchip PIC programming
It allows users to program their hex code into Flash PIC MCU by using In-Circuit Programming (ICSP) method or Off-Board Programming (Adapter) method.
1. iCP01 - USB PIC Programmer Datasheet
* Low cost, small size , high performance and user friendly device
* No external power supply is required
* Used for programming the popular Flash PIC MCU, includes PIC10F, PIC12F, PIC16F, PIC18F and dsPIC30 family
* Compatible with Microchip's PICkit 2 and MPLAB IDE
* Supported operating systems (32bit/64bit): Windows XP ,Windows Vista and Windows 7
* USB plug and play function
* Excellent flexibility that allows using in both PC desktop and laptop
* Dimension: 6.8cm X 2.5cm X 0.9cm, easy to carry and store
* Standard 2.54mm Pin Socket for ICSP connection
* 3.3V supply, J-Series and in-Circuit Debugging mode are not supported
* ICSP connector reference connection: http:// /picture/ICSP%20Connection.jpg
2. iCP03 - Multi PIC Adapter Datasheet
* PIC programmer adapter which can support 8-pin to 40-pin devices by using single ZIF socket
* iCP01 - USB PIC Programmer Datasheet: http:// /doc/iCP01%20User%20Manual.pdf
* iCP03 - Multi PIC Adapter Datasheet: http:// /doc/iCP03%20User%20Manual.pdf
* PICKit2 Installer: Download
* Free Hi-Tech C Tutorial & Source Code - Please visit: http:// /
* 8 Pin: PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12F615, PIC12F629, PIC12F635, PIC12F679, PIC12F683
* 14 Pin: PIC16F505, PIC16F506, PIC16F526, PIC16F610, PIC16F616, PIC16F630, PIC16F636, PIC16F676, PIC16F684, PIC16F688
* 18 Pin: PIC16F54, PIC16F84A, PIC16F87, PIC16F88, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F716, PIC16F818, PIC16F819, PIC16F1826, PIC16F1827, PIC18F1320, PIC18F1330, PIC18F1220, PIC18F1230
* 20 Pin: PIC16F631, PIC16F639, PIC16F677, PIC16F685, PIC16F687, PIC16F689, PIC16F690, PIC16F785
* 28 Pin: PIC16F57, PIC16F72, PIC16F73, PIC16F722, PIC16F723, PIC16F726, PIC16F737, PIC16F767, PIC16F870, PIC16F872, PIC16F873A, PIC16F876A, PIC16F882, PIC16F883, PIC16F886, PIC16F913, PIC16F916, PIC16F1933, PIC16F1936, PIC16F1938, PIC18F2220, PIC18F2221, PIC18F2320, PIC18F2321, PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2423, PIC18F2431, PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523, PIC18F2525, PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F2682, PIC18F2685
* 40 Pin: PIC16F59, PIC16F74, PIC16F77, PIC16F1937, PIC16F727, PIC16F724, PIC16F747, PIC16F777, PIC16F871, PIC16F874A, PIC16F877A, PIC16F884, PIC16F887, PIC16F914, PIC16F917, PIC16F1939, PIC18F4220, PIC18F4221, PIC18F4320, PIC18F4321, PIC18F4331, PIC18F4410, PIC18F4420, PIC18F4423, PIC18F4431, PIC18F4450, PIC18F4455, PIC18F4458, PIC18F4480, PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523, PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580, PIC18F4585, PIC18F4610, PIC18F4620, PIC18F4680, PIC18F4682, PIC18F4685
* dsPIC30 (With ICSP only): dsPIC30F1010, dsPIC30F2010, dsPIC30F2011, dsPIC30F2012, dsPIC30F2020, dsPIC30F2023, dsPIC30F3010, dsPIC30F3011, dsPIC30F3012, dsPIC30F3013, dsPIC30F3014, dsPIC30F4011, dsPIC30F4012, dsPIC30F4013
* Registered Air Mail (Delivery time is 7-21 business days)
* Please request total for combined orders.
* Please contact us if you are not satisfied with the item when you receive it.
* Damage caused by any misuse of product is not covered under warranty.
* Please read our policy and product description before your purchase. We will explain it in detail and satisfy your needs.
* Feel free to contact us! Email: ****@piccircuit.com
* For more information or Bulk Order, please visit
