Hydraulic lift table & ergo material handling machine
Ergonomically designed for the Operator to get better Productivity

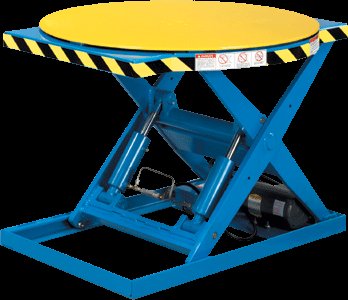

Roto-Max was designed from the ground up with the operator in mind, to improve worker productivity while reducing the potential for worker injuries. The Roto-Max electric hydraulic work positioner places the load at the operator to determine where he or she would like the work load positioned.
It doesn't matter how short or tall the individual is since the operator determines the most comfortable working height. The Roto-Max allows complete flexibility to do the ergonomically safest job with maximum efficiency.
Whether the load is one pound or 3,500 pounds, the positioner height does not change until the individual wants it to change.
With a lowered height of only 6.5", an operator has easy access to the top layer of product. The raised height of 32.5" (plus pallet height) is ideally suited for most applications.
The 43" diameter top rotates easily, thus giving the operator access to product without having to stretch or walk around.
The high performance electric 1 & 1/2 hp motor runs on a standard 20 amp 115 volt single phase circuit.
Roto-Max has a capacity of 3,000 lbs. with a 14 second lift speed (RTMX-30). The high speed model (RTMX25HS) has an 8 second speed and 2,500 lbs. capacity.
A magnetic backed control box is standard and a foot control switch is available as an optional item.
Lowered Roto-Max Safety Bar Roto-Max Zerk Fittings Trapped Bottom Scissor Arm
Lowered Height of only 6.5" Built-in Maintenance Safety Bars Zerk fittings on pivot points Trapped top and bottom scissor arms
Please call us if you have any questions
360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings
Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods
Surfaces degreased, de-scaled and finished with safety yellow and blue enamel
Control box NEMA constant pressure, magnetic backed
10 foot power cord (Connector not included)
Smooth steel top with yellow and black safety strips
Integral gear pump with check valve, relief valve, solenoid valve
Includes hydraulic oil and filter
Please call or email to add these options-
Dolly Jack Square Top Accordion Skirting
Semi-live wheels and dolly jack ($695) Square or rectangular tops (Call Us) Accordion safety skirting ($595)
Rotation Brake Kit ($270)
Fork Pockets Add 3" to lowered and raised height ($365)
Fork Entry Bars allows fork to slide under frame ($395)
Spring Activated Detents every 45 or 90 degrees ($286)
Stainless Steel Top or Complete Stainless Steel Construction (Call Us)
230/460 Volt 3 Phase (Standard on RTMX-35) ($395)
230 Volt Single Phase ($350)
