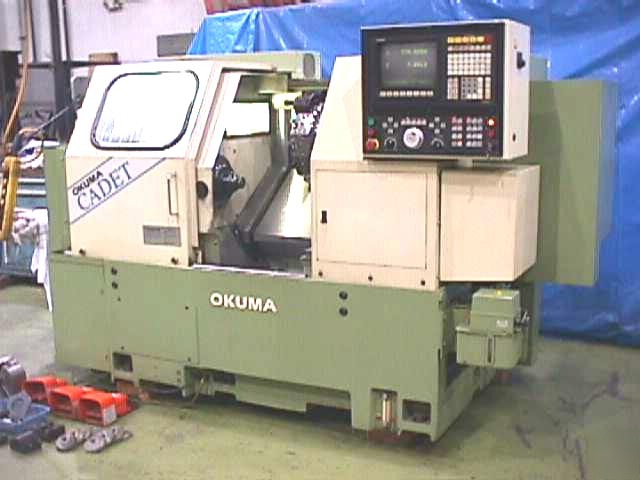

Okuma lnc-8 cadet cnc turning center or chucker mint
OKUMA MODEL LNC-8 CADET CNC TURNING CENTER OR
Maximum Turning Diameter: 9.84"
Maximum Recommended Work Length:
Maximum Recommended Allowable Weight:
Spindle Diameter At Front Bearing: 3.94"
Range Of Spindle Speeds: 75 To 4,200 RPM
Number Of Spindle Speeds: Auto 2 Ranges
Cross Slide (X-Axis) And Carriage (Z Axis):
Cross Slides Travel, X Axis: 6.75"
Longitudinal Travel, Z Axis: 20.47"
Rapid Traverse Speed, X And Z Axis: 472 IPM
Cutting Feed Rate, X And Z Axis: 0.0001 Thru
Tool And No. Of Tool Stations: V12
Tool Size: 1" x 1" O.D. Type, 1.50 Dia. Maximum
Turret Size (Across Flats): 15.75"
Turret Clamping Force: 7,920 Lbs.
Turret Index Time: 0.8 Seconds
New Kitagawa 8" Chuck In Box, (Very Expensive)
(3) Aluminum Jaws For 3 Jaw Chuck
(4) Sets Of Assorted Jaws For 3 Jaw Chuck
Hydraulic Power Unit: 10.6 Gallons
Main Spindle Drive Motor: VAC 10 HP 30 Minutes
(Variable Speed AC Drive): VAC 7.5 HP Cont. Duty
Hydraulic Oil Pump Motor: 2 HP
(Currently Wired For 220 Volts)
The Okuma Cadet Lathe, With The Okuma OSP 5020L CNC
Control System, Servo Drive Units, Spindle Motor
And Patented Encoder Positioning Device Are All
The Heavily Ribbed, 30 Degree Bed Casting Is Computer
Designed For Superior Stiffness To Assure Consistent
The Spindle Features An ASA A2-6 Nose With A 2.20"
This Is A Geared Headstock With Two Speed Ranges To
4,200 RPM. The Torque Output Is 230 Lbs., And Full
Both X And Z Axes Are Driven By The Ultra Precise Ball-
Screws And Pre-Loaded Ballscrew Nuts, Center Mounted
Between The Ways For Optimum Drive Conditions
The X Axis Ballscrew, With A 1.299" Diameter, Is Driven
By A 2.0 HP Brushless Servomotor
The Z Axis Ballscrew, With A 1.299 Diameter, Is Driven
The Patented Absolute Digital Encoder, Coupled Directly
To The Servomotor, Provides Positive Absolute Output
The V12 Turret, 15.75" Across The Flats, Is Designed
To Hold 12 Tools, Either I.D. (1.5" Diameter) Or
O.D. (1.0" Sq. Shank) In Any Position. The O.D.
Tool Clamping Method Is "Bolt-Type".
Turret Index Speed Is Fast, 0.8 Second, With Shortest
Path Indexing A Standard Feature
The VAC 10 HP Main Drive Motor Is Isolated From The
Main Base Casting And Headstock
Multiple V-Belts Transmit Full Power To The Headstock
An Independent 1/3 HP Pump Unit Is Conveniently Located
At The Tailstock End Of The Machine
The Inside Of The Guards On This Okuma Cadet Have The
Majority Of Their Original Paint Where Chips Usually
Rub It Off. This Is A Good Indication That The Mach-
ine Has Had Light Work And Low Volume Use.
Approximate Cost Of Base Machine When Purchased
All Available Books Included, (See Photo),
Approximately 18 Lbs. Of Books
Approximate Dimensions: 69" D x 110" W x 69" H
